Manual Seat (RH)

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

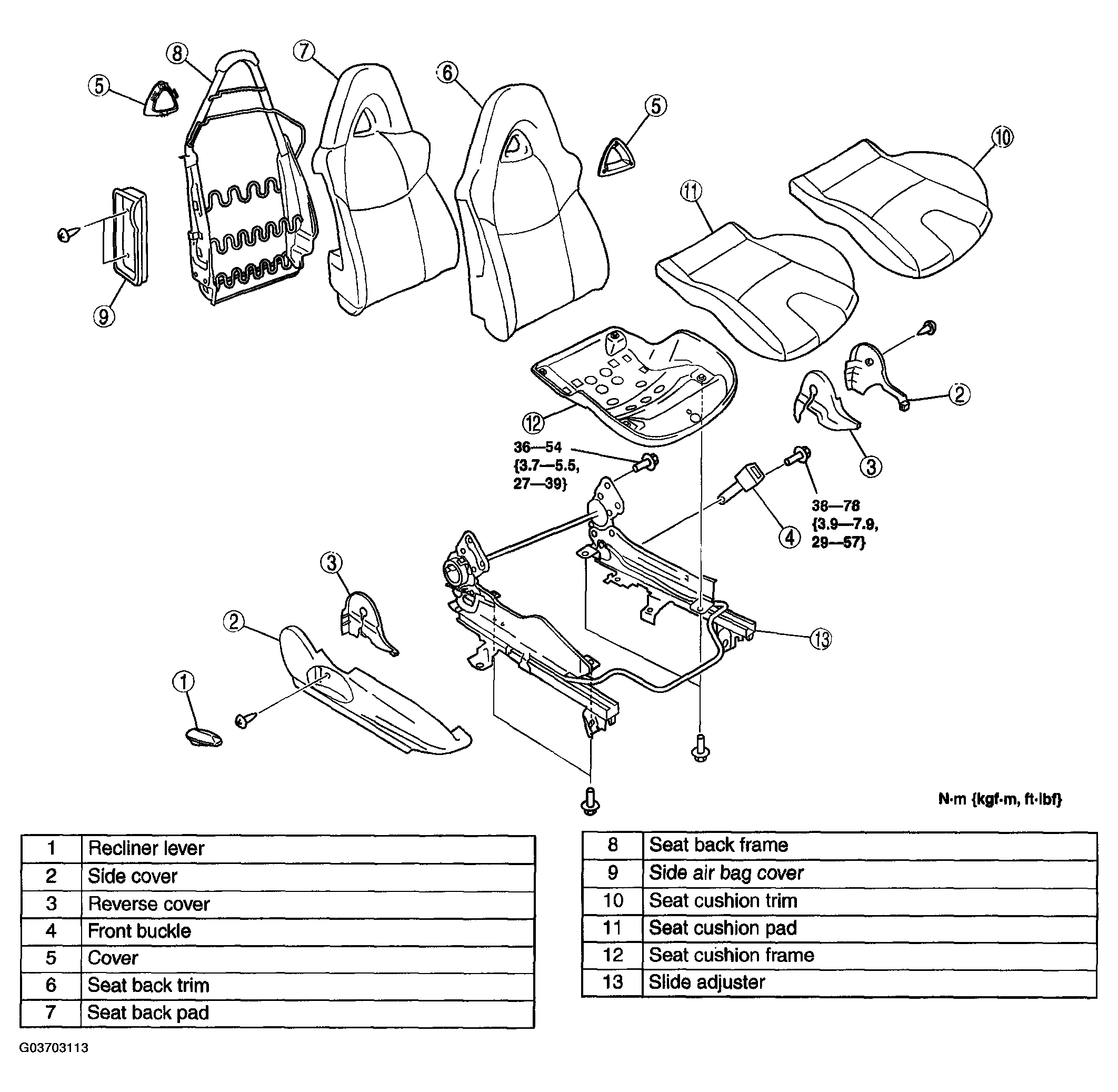

Fig 1: Exploded View Of Manual Seat With Torque Specifications (RH)
G03703113Courtesy of MAZDA MOTORS CORP.
