Front Bumper Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. To disassemble the front bumper, remove the following parts:
    1. Front fog lights (Vehicles with the front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .)
    2. Headlight cleaner hose (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION .)
    3. Headlight cleaner nozzles (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER NOZZLE REMOVAL .) (See HEADLIGHT CLEANER NOZZLE INSTALLATION .)
    4. Headlight cleaner actuator (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.

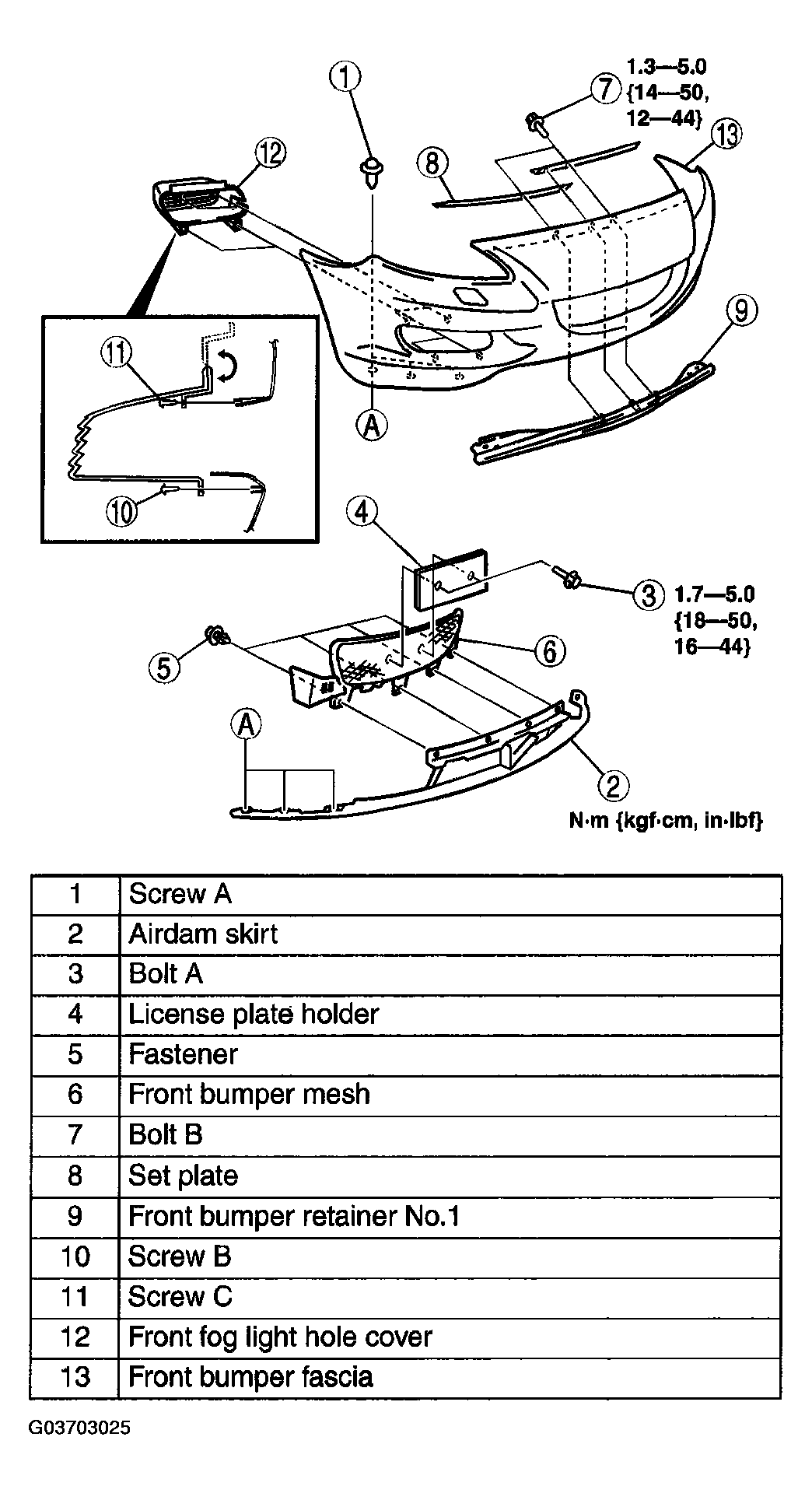

    Fig 1: Disassemble Order Of Front Bumper With Torque Specification
    G03703025Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
