Inspection Procedure

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Follow the steps below to inspect the SST (49 H066 002).

If not as indicated in the table, replace the SST (49 H066 002) because it has a malfunction.

WARNING:

Do not use a malfunctioning SST (49 H066 002), otherwise it could cause the air bag module or pre-tensioner seat belt to accidentally operate (deploy).

CAUTION:

Because the permissible voltage for the SST (49 H066 002) is 12 V, do not connect a 24 V power source because it will damage the SST. Always connect only a 12 V power source.

SST INSPECTION STEPS

Step	Inspection procedure	Light condition
Step	Inspection procedure	Green	Red
1	Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.	On	Off
2	Connect connectors A and B.	Off	On
3	Press the activation switch.	On	Off

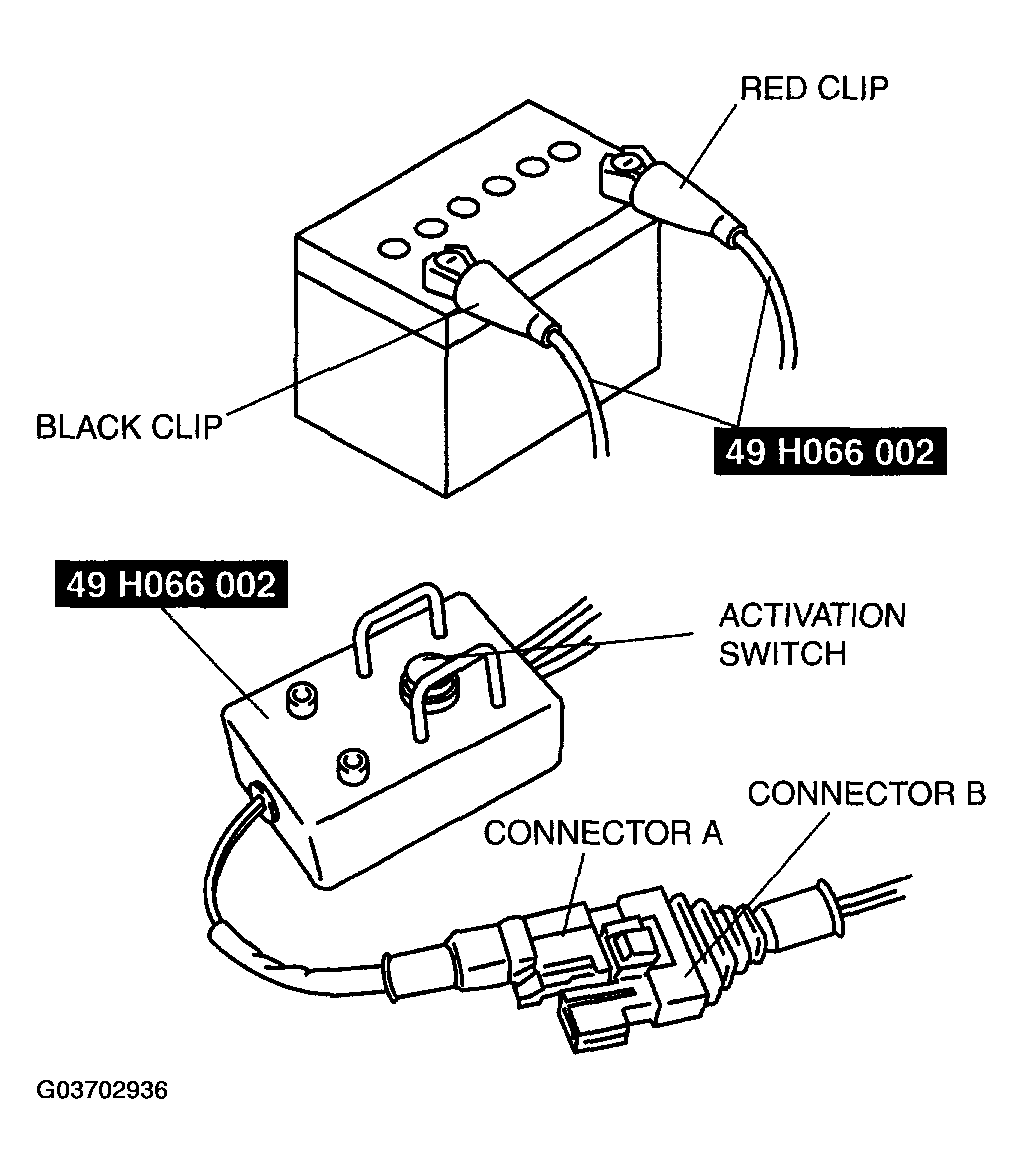

Fig 1: Inspecting SST

Courtesy of MAZDA MOTORS CORP.
