Curtain air bag module

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire house trim.

    (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)

  2. Disconnect the curtain air bag module connector.
  3. Connect the SST  (Adapter harness) to the curtain air bag module as shown in the figure.

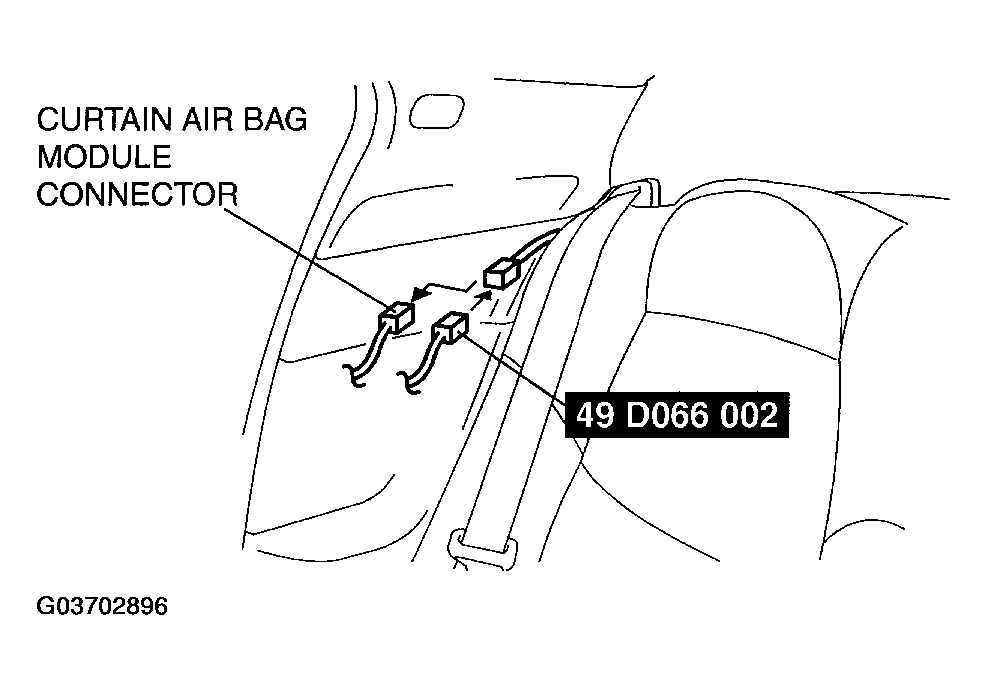

    Fig 1: Connecting SST (Adapter Harness) To Curtain Air Bag Module
    G03702896Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST  (Deployment tool) to the SST  (Adapter harness).
  5. Connect the SST  (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  6. Verify that the red lamp on the SST  (Deployment tool) is illuminated.
  7. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
    Fig 2: Connecting SSTs (Deployment Tool) To SSTs (Adapter Harness)
    G03702897Courtesy of MAZDA MOTORS CORP.
  8. Press the activation switch on the SST  (Deployment tool) to operate (deploy) the curtain air bag module.
    Fig 3: Identifying Activation Switch On SST (Deployment Tool)
    G03702898Courtesy of MAZDA MOTORS CORP.
