DTC B1996, B1997, B1998, B1999: Pasenger-side side air bag module circuit malfunction: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

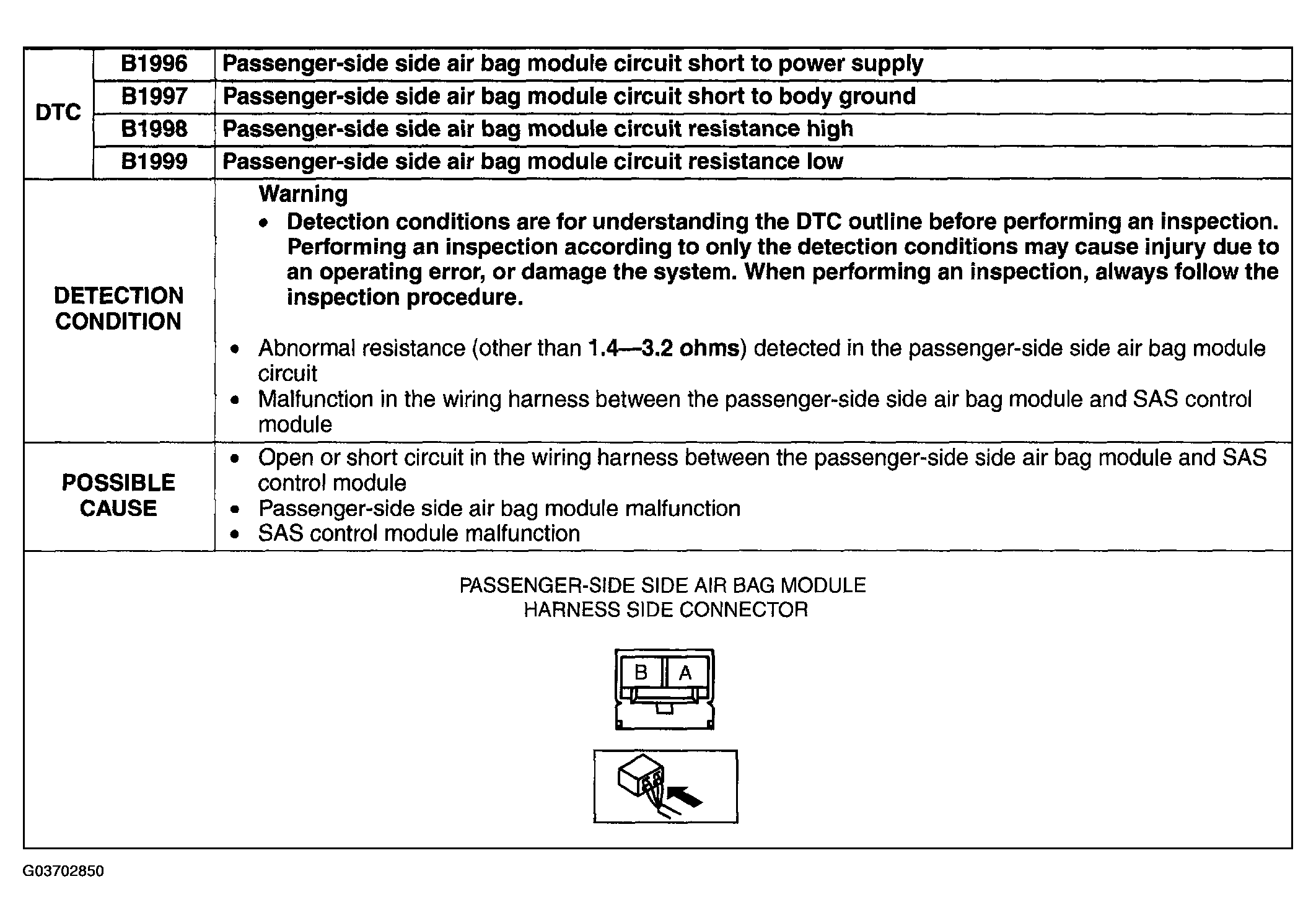

Fig 1: DTC B1996, B1997, B1998, B1999 Detection Condition & Possible Causes

Courtesy of MAZDA MOTORS CORP.
