Transmission Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Shift to any gear position.
Install the SST to the main shaft.

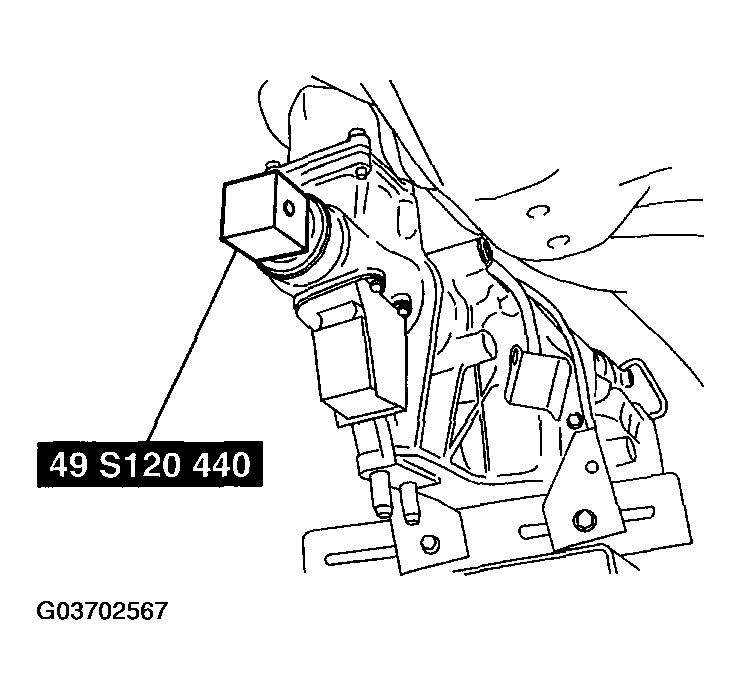

Fig 1: Installing SST To Main Shaft
Courtesy of MAZDA MOTORS CORP.
WARNING:
- Remove the transmission carefully, holding it steady. If the transmission falls it could be damaged or cause injury.
Place the transmission on the transmission jack and raise it.

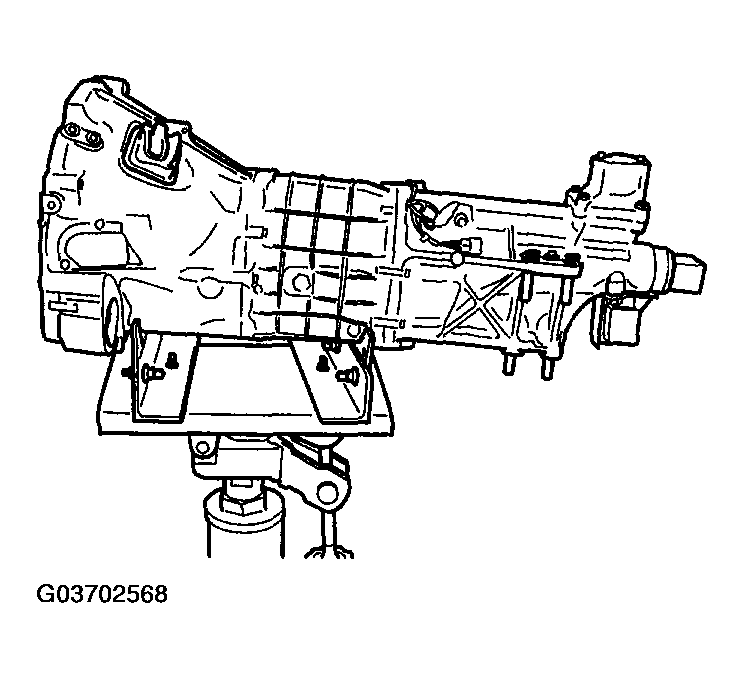

Fig 2: Placing Transmission On Transmission Jack
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Slowly rotate the SST to engage the clutch with the main drive gear spline, and install the transmission.
Install the transmission.
Tighten the transmission installation bolt.
Bolt length
1. : 55 mm {2.1 in}
2. : 90 mm {3.5 in}
Tightening torque
1. 37-52 N.m {3.8-5.3 kgf.m, 28-38 ft.lbf}
Fig 3: Identifying Transmission Installation Bolt
Courtesy of MAZDA MOTORS CORP.
