Neutral Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the neutral switch.

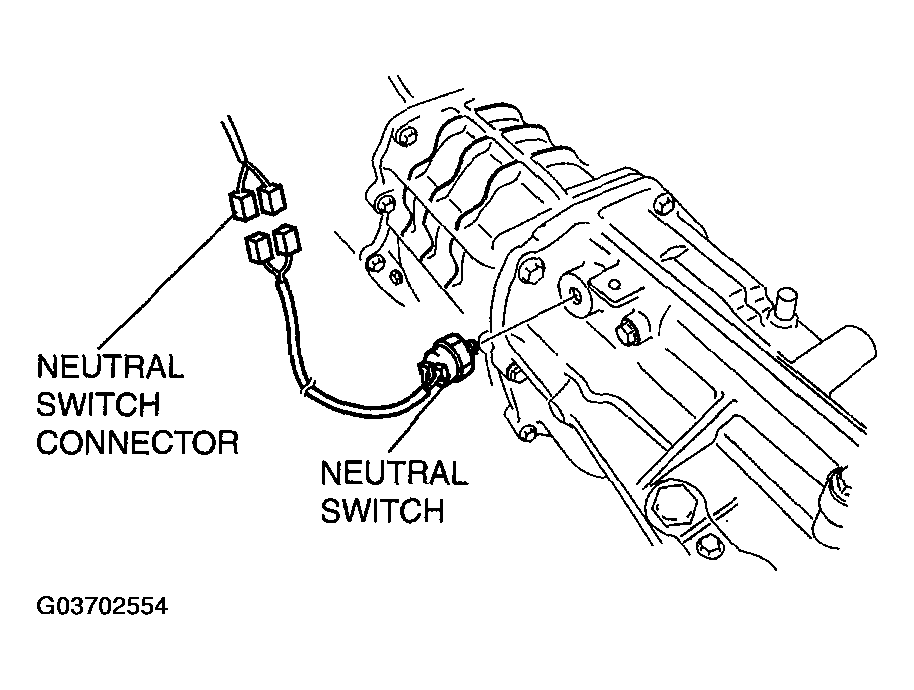

Fig 1: Removing Neutral Switch
Courtesy of MAZDA MOTORS CORP.
Install the neutral switch to the transmission case.
Tightening torque
1. 30-39 N.m
  1. {3.1-3.9 kgf.m, 23-28 ft.lbf}
