Section 460 (Symptom Troubleshooting [Transmission])
>>
Automatic Transmission Control System Wiring Diagram
Automatic Transmission Control System Wiring Diagram
WARNING:
This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

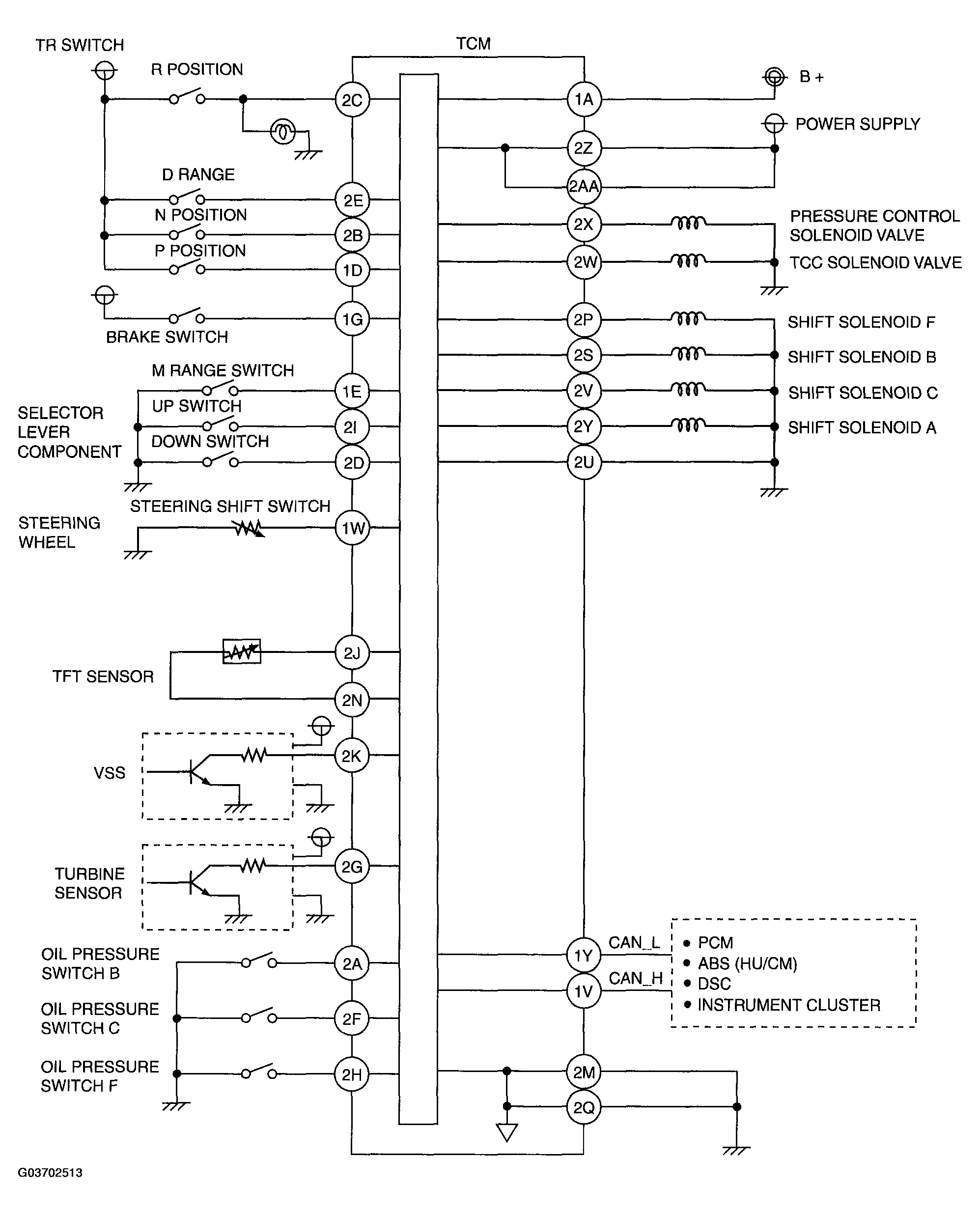

Fig 1: Wiring Diagram - Automatic Transmission Control System
Courtesy of MAZDA MOTORS CORP.
