Brake Pedal Height Inspection
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

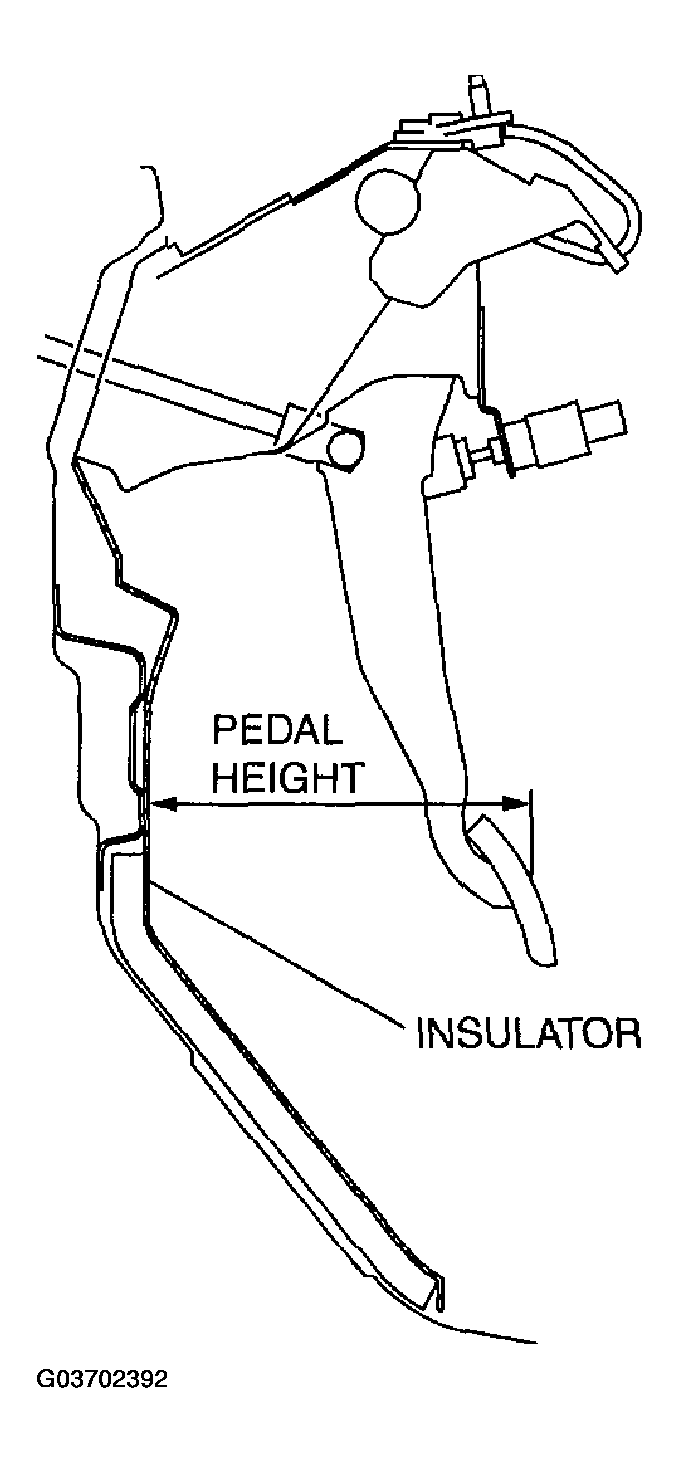

- Measure the distance from the center of the upper surface of the pedal pad to the insulator and verify that it is as specified.
- If not within the specification, adjust the pedal height.
Pedal height (reference value)
- 175 mm {6.89 in}
