Wheel Bearing Looseness Inspection
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

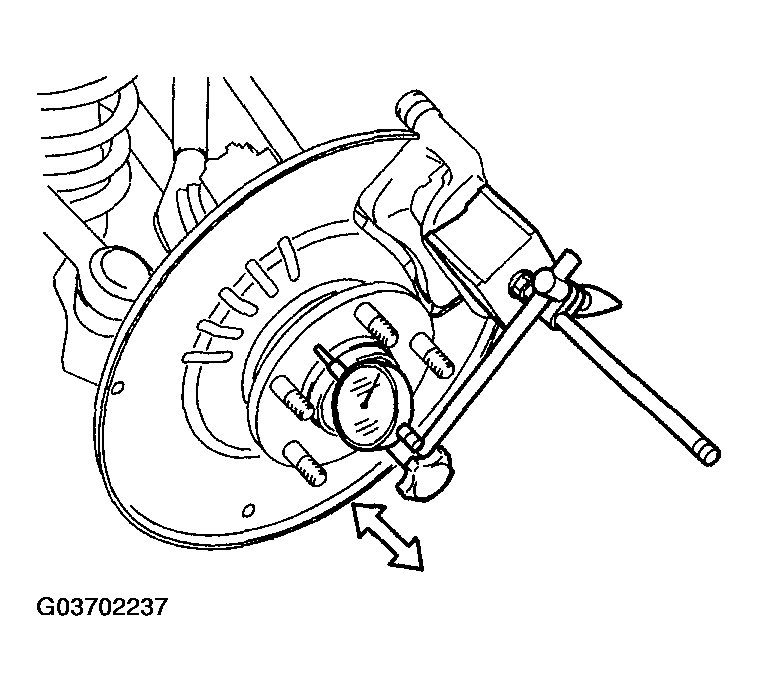

- Install the magnetic vase and dial gauge as shown in the figure, and inspect the wheel bearing for axial looseness.
- If it exceeds the maximum specification, replace the wheel hub component.
Maximum wheel bearing play
- 0.05 mm {0.002 in}
