Wheel and tires

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

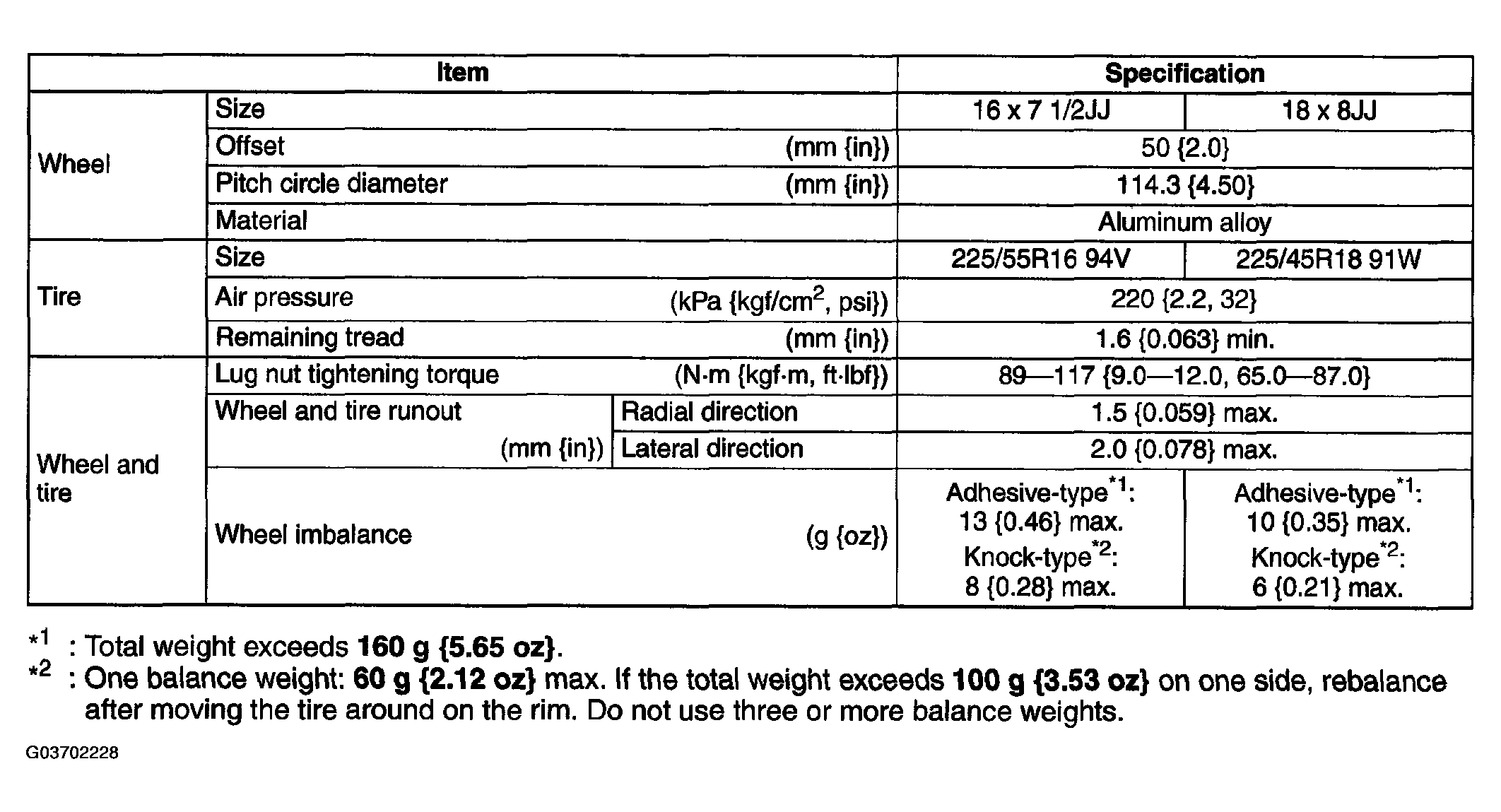

Fig 1: Wheel And Tires Specification
G03702228Courtesy of MAZDA MOTORS CORP.
