Ball joint rotational torque

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

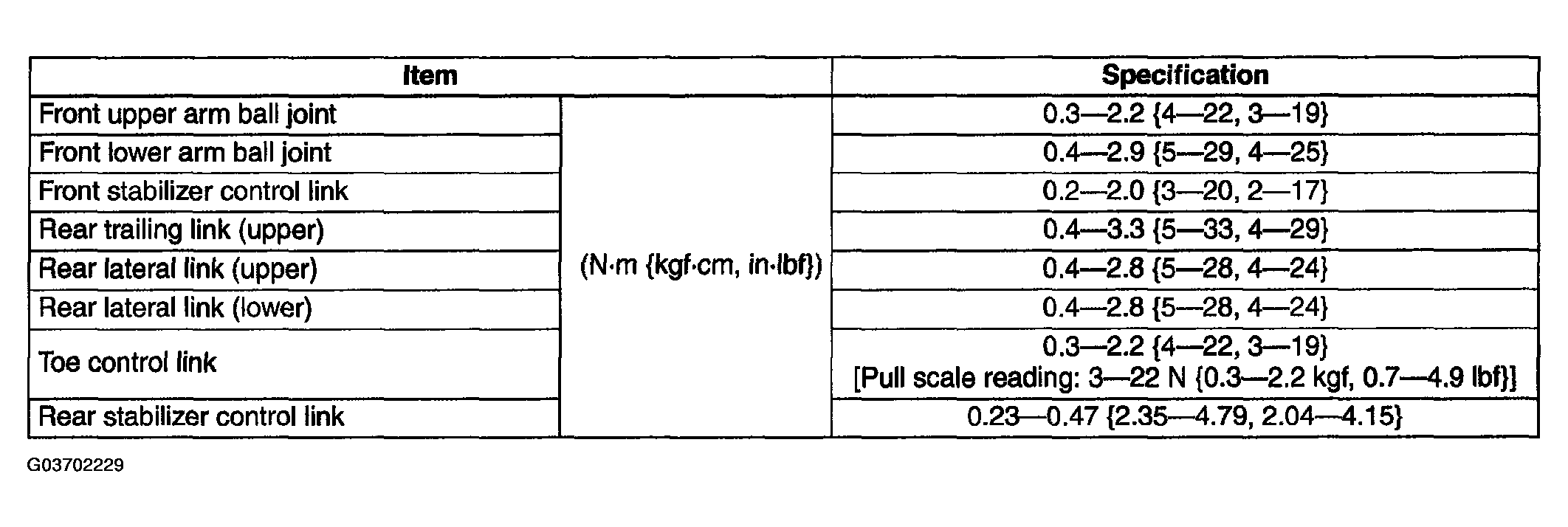

Fig 1: Ball Joint Rotational Torque Specification
G03702229Courtesy of MAZDA MOTORS CORP.
