Rear Trailing Link (Upper) Ball Joint Removal Note
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

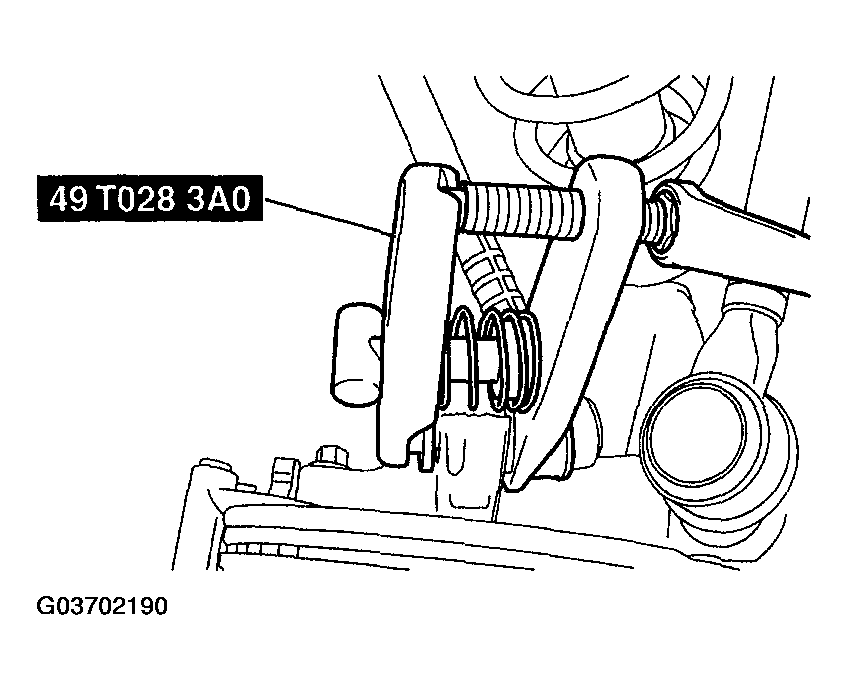

- Using the SST
, disconnect the ball joint.
NOTE:
- When removing the rear trailing link (upper) ball joint, the rear knuckle bushing may also come off. If it comes off, replace the rear knuckle.
Courtesy of MAZDA MOTORS CORP.
