Rear Trailing Link (Lower) Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the rear knuckle using a jack.
    CAUTION:
    • Be sure that the rear axle component is firmly supported by the jack. If not securely supported, the rear axle component could fall, resulting in serious injury or death, and damage to the vehicle.
  2. Remove the rear trailing link (lower) outer bolt.
  3. Remove the rear trailing link (lower) inner bolt.

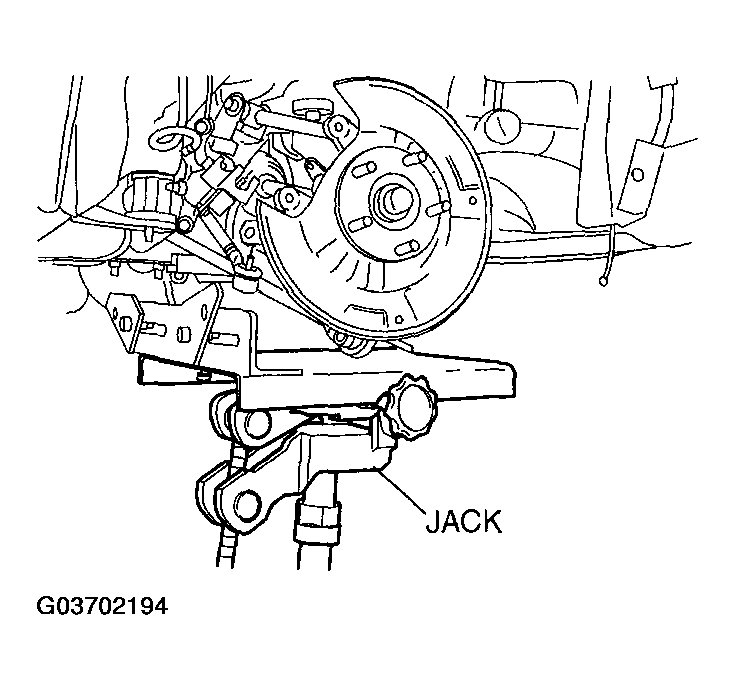

    Fig 1: Supporting The Rear Knuckle Using Jack
    G03702194Courtesy of MAZDA MOTORS CORP.
