Secondary Air Injection (Air) Solenoid Valve Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the extension manifold (upper). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

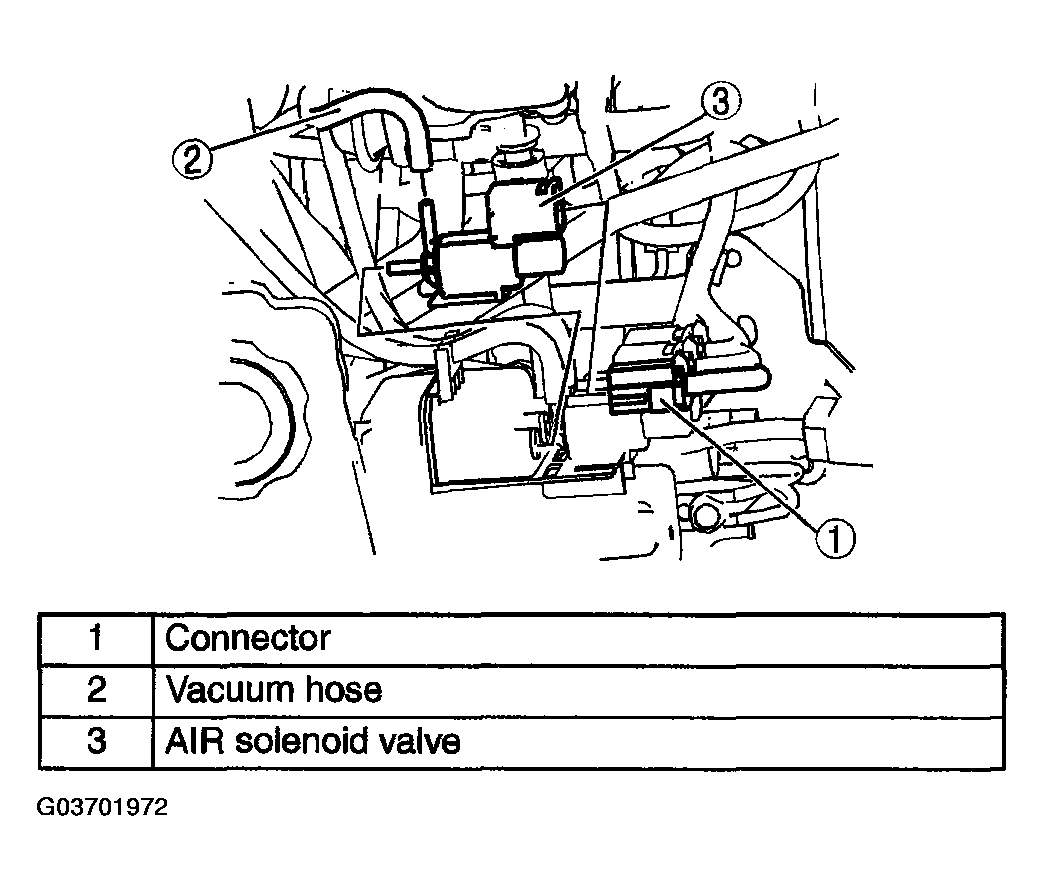

Fig 1: Identifying Secondary Air Injection Solenoid Valve
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
