Radiator Grille Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts, clips and fasteners.
Pull the radiator grille forward.
Install in the reverse order of removal.

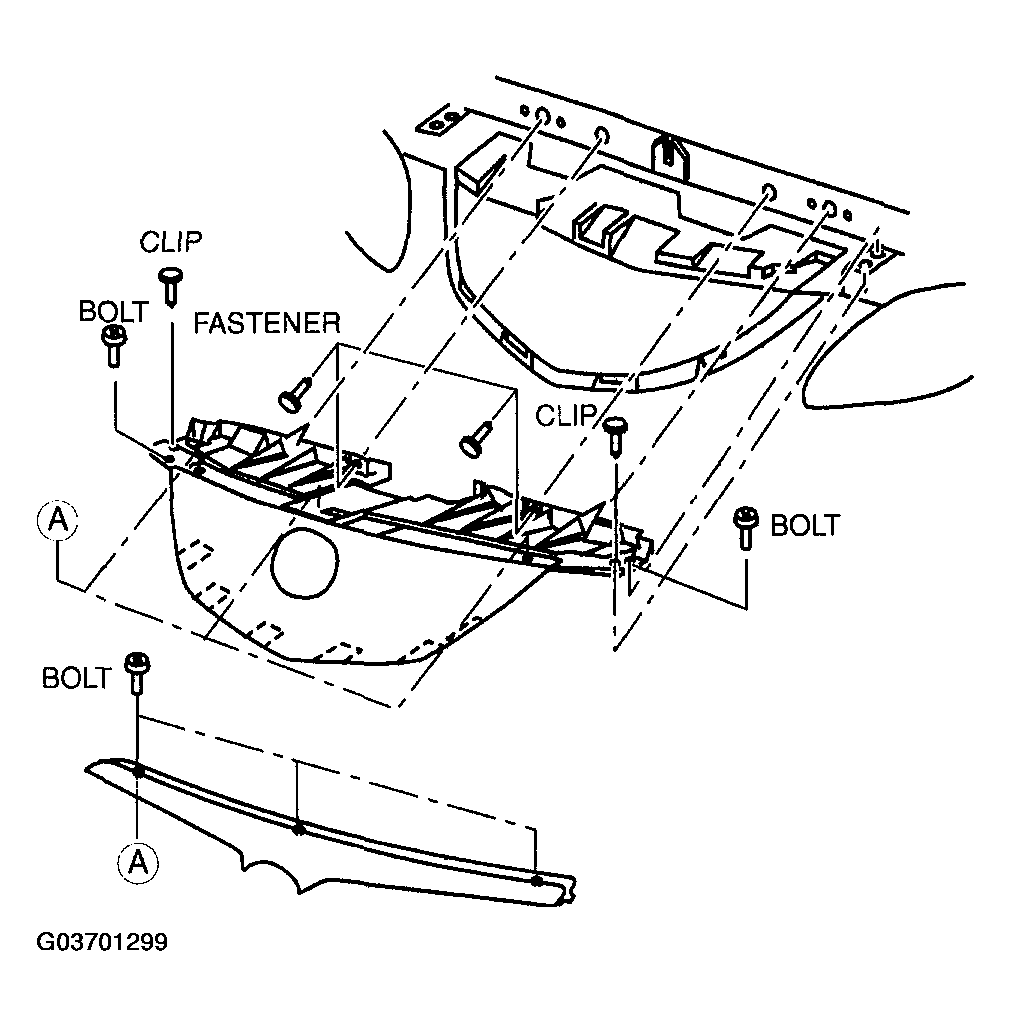

Fig 1: Identifying Radiator Grille Removal/Installation Procedure
Courtesy of MAZDA MOTORS CORP.
