Rear Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear bumper. (See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
  3. Remove the bolt.
  4. Remove the bumper reinforcement.

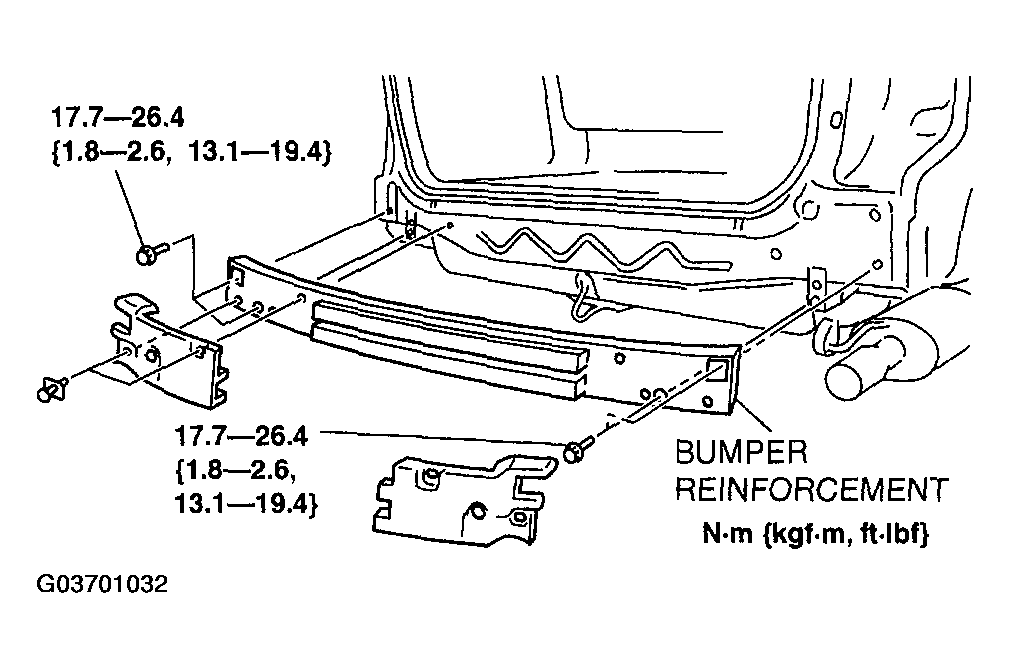

    Fig 1: Removing Rear Bumper Reinforcement - With Torque Specification
    G03701032Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
