Second-Row Seat Belt Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

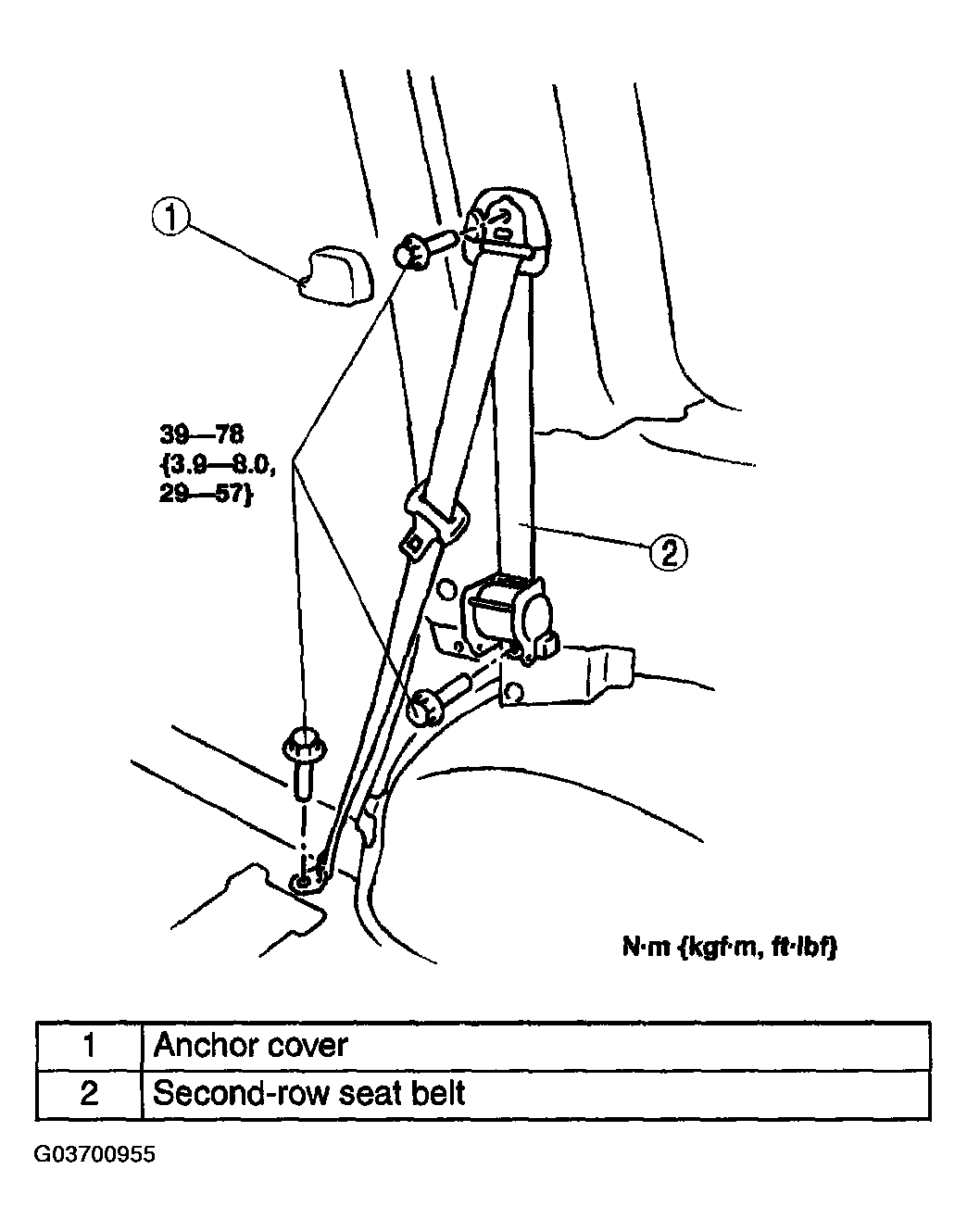

    Fig 1: Removing Second-Row Seat Belt - With Torque Specifications
    G03700955Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
