Removal & Installation: CLOCKSPRING: Installation

WARNING: This page is about a different car, the 2002 Mazda Millenia. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Before installing steering wheel, center clockspring. See CLOCKSPRING CENTERING under ADJUSTMENTS. Tighten steering wheel nut to specification. See TORQUE SPECIFICATIONS .
After installation, activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK .

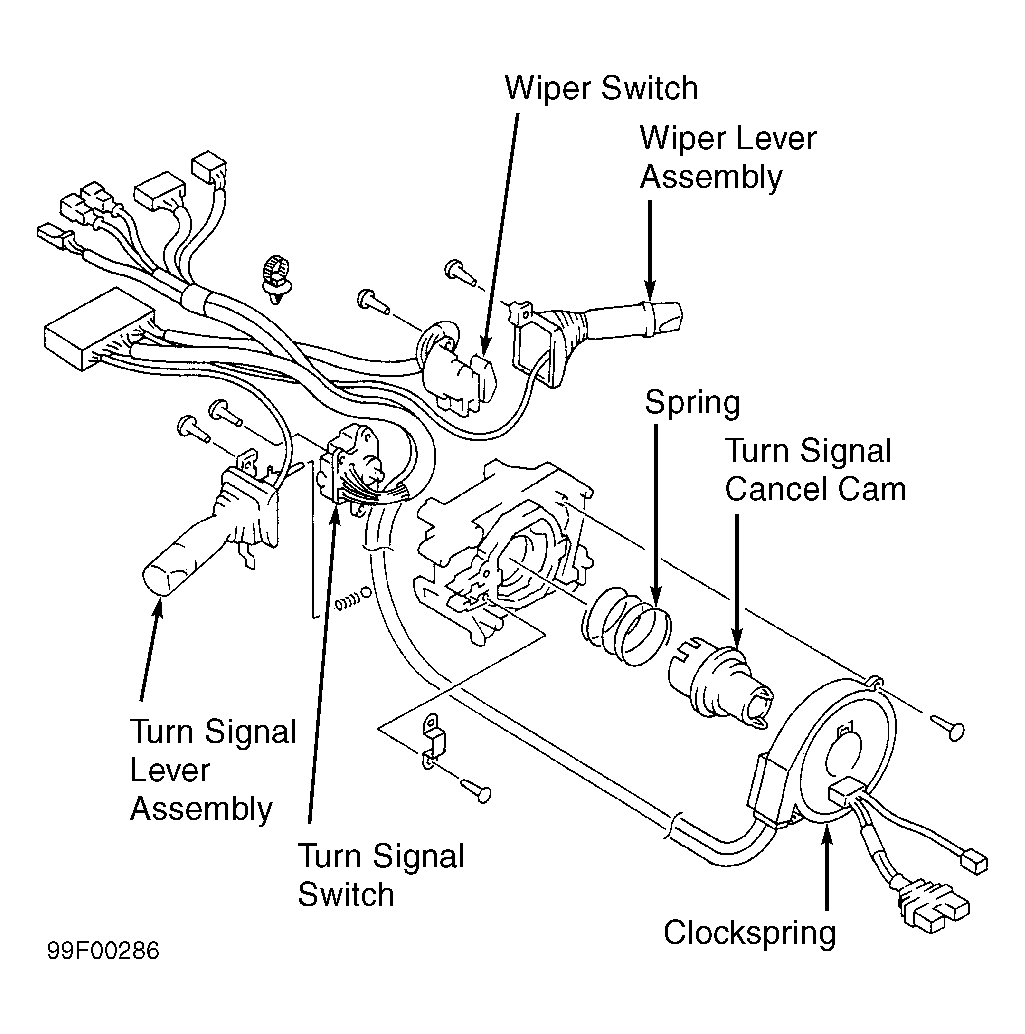

Fig 1: Exploded View Of Combination Switch Assembly

Courtesy of MAZDA MOTORS CORP.
