Passenger-side air bag module

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove compartment.
  2. Disconnect the passenger-side air bag module connector.
  3. Connect the SST  (Adapter harness) to the passenger-side air bag module as shown in Fig 1.

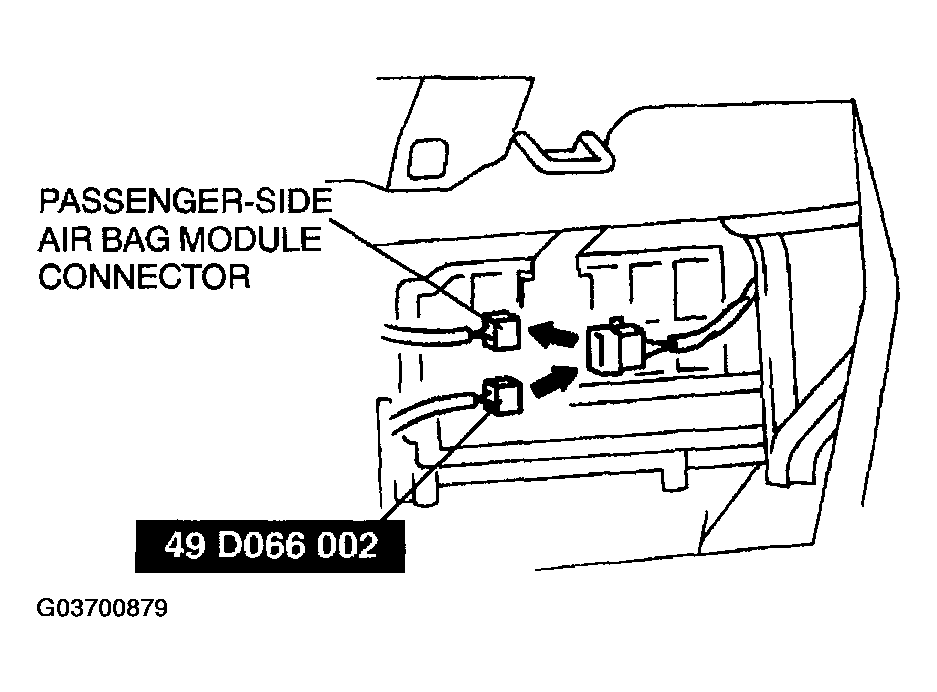

    Fig 1: Connecting SST (Adapter Harness) To Passenger-Side Air Bag Module
    G03700879Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST  (Deployment tool) to the SST  (Adapter harness).
  5. Connect the red clip of the SST  (Deployment tool) to the positive battery terminal and the black clip to the negative battery terminal.
  6. Verify that the red light on the SST  (Deployment tool) is illuminated.
  7. Make sure all persons are standing at least 6 m {20 ft}  away from the vehicle.

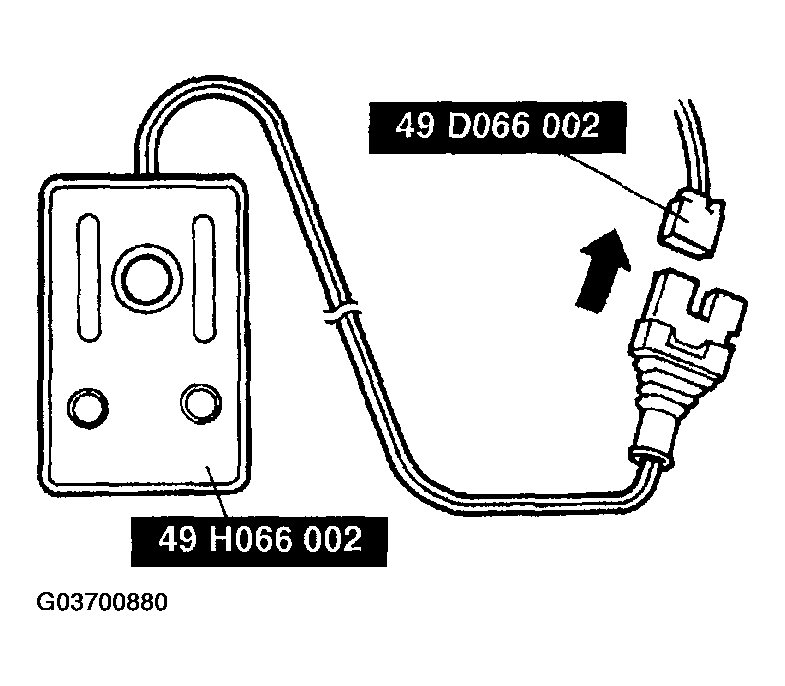

    Fig 2: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G03700880Courtesy of MAZDA MOTORS CORP.
  8. Press the activation switch on the SST  (Deployment tool) to deploy the passenger-side air bag module.
    Fig 3: Identifying Activation Switch On SST (Deployment Tool)
    G03700881Courtesy of MAZDA MOTORS CORP.
