Electric Current Value

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If 10 A A/C fuse is often burnt out, the cause may be short circuit in the stator coil. Perform the following inspection.

Disconnect the magnetic clutch connector.
Connect battery positive voltage and a tester to terminal A and ground to terminal B of the magnetic clutch as shown.

Fig 1: Connecting Battery Positive Voltage And Tester To Terminal A And Ground To Terminal B Of Magnetic Clutch
Courtesy of MAZDA MOTORS CORP.
Verify the electric current value of the stator.
- If there is any malfunction, replace the stator.
Electric current value (approx. quantity)
1. 2.9 A (Normal temperature)
2. MAX. 4.0 A or less

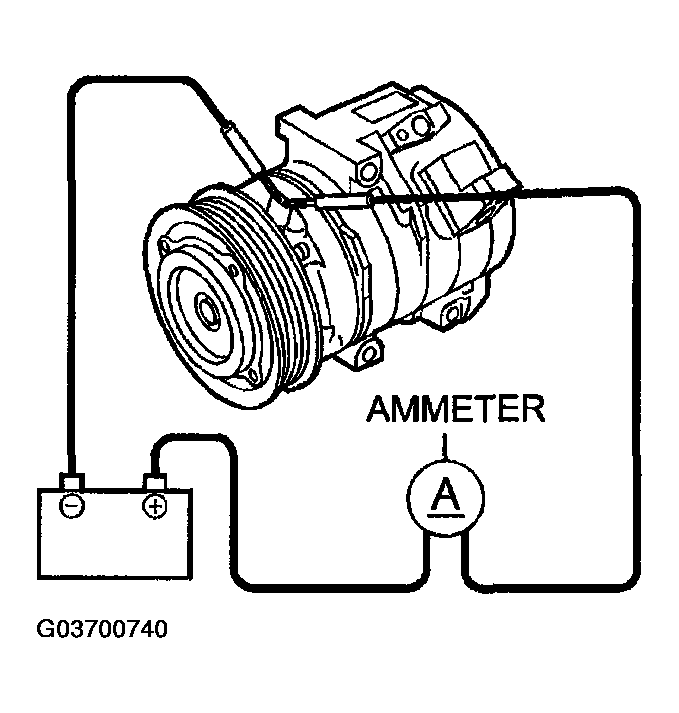

Fig 2: Inspecting Electric Current Value Of Stator
Courtesy of MAZDA MOTORS CORP.
