Resistance Inspection (On-Vehicle)
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

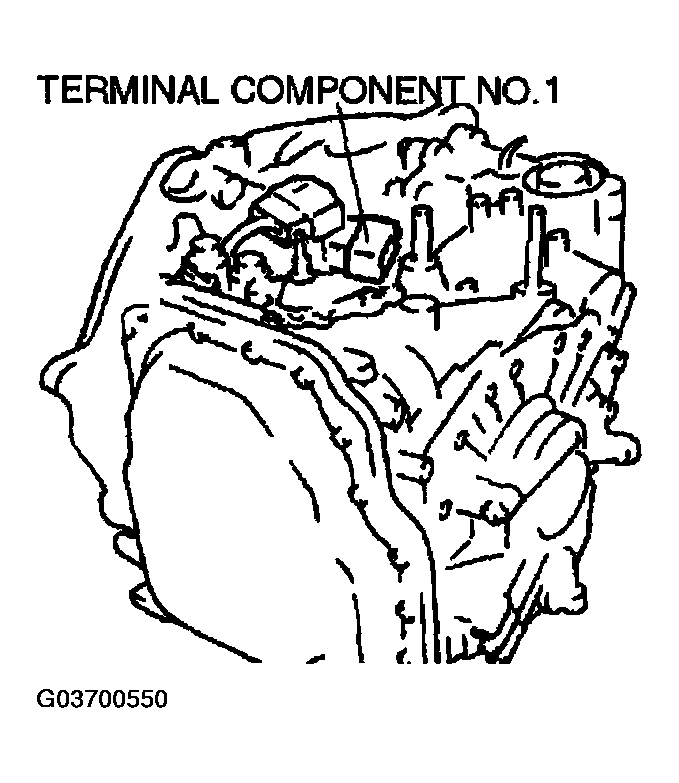

- Disconnect the terminal component No.1 connector.
- Measure the resistance between the following terminals.
- If not as specified, inspect each solenoid valve. (See RESISTANCE INSPECTION (OFF-VEHICLE) .)
Courtesy of MAZDA MOTORS CORP.
ATF temperature: 20 °C {68 °F}
ATF TEMPERATURETerminal Solenoid valve Resistance (ohm) A-J 2-4 brake solenoid valve 2.6-3.2 B-J TCC solenoid valve 12.0-13.2 C-J High clutch solenoid valve 2.6-3.2 D-J Pressure control solenoid 2.6-3.2 E-J Reduction timing solenoid valve 14-18 F-J Shift solenoid C 14-18 G-J Shift solenoid B 14-18 H-J Neutral shift solenoid valve 14-18 I-J Shift solenoid A 14-18 - Connect the terminal component No.1 connector.
- Connect the negative battery cable.
