Oil Pan Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transaxle housing bolts from oil pan.

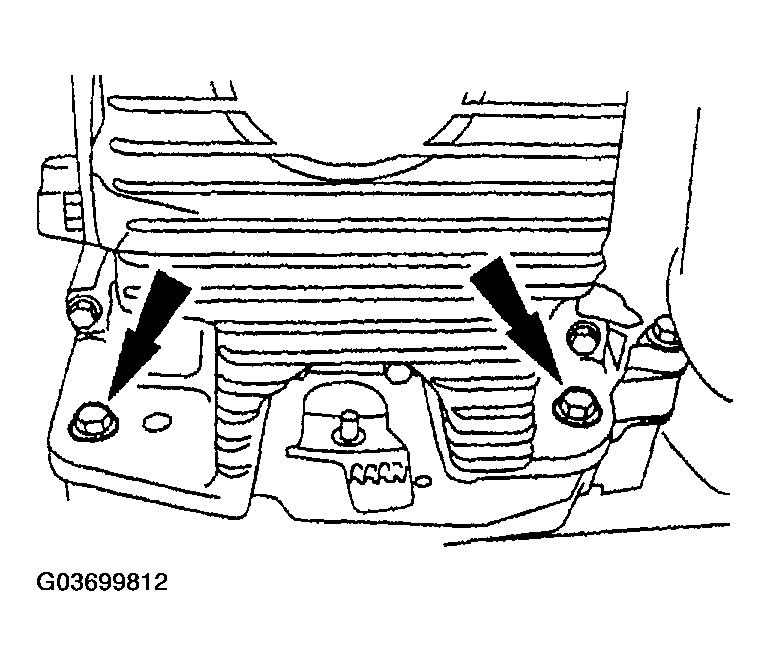

Fig 1: Removing Transaxle Housing Bolts From Oil Pan
Courtesy of MAZDA MOTORS CORP.
Loosen the oil pan bolts and studs in several passes in the order shown.

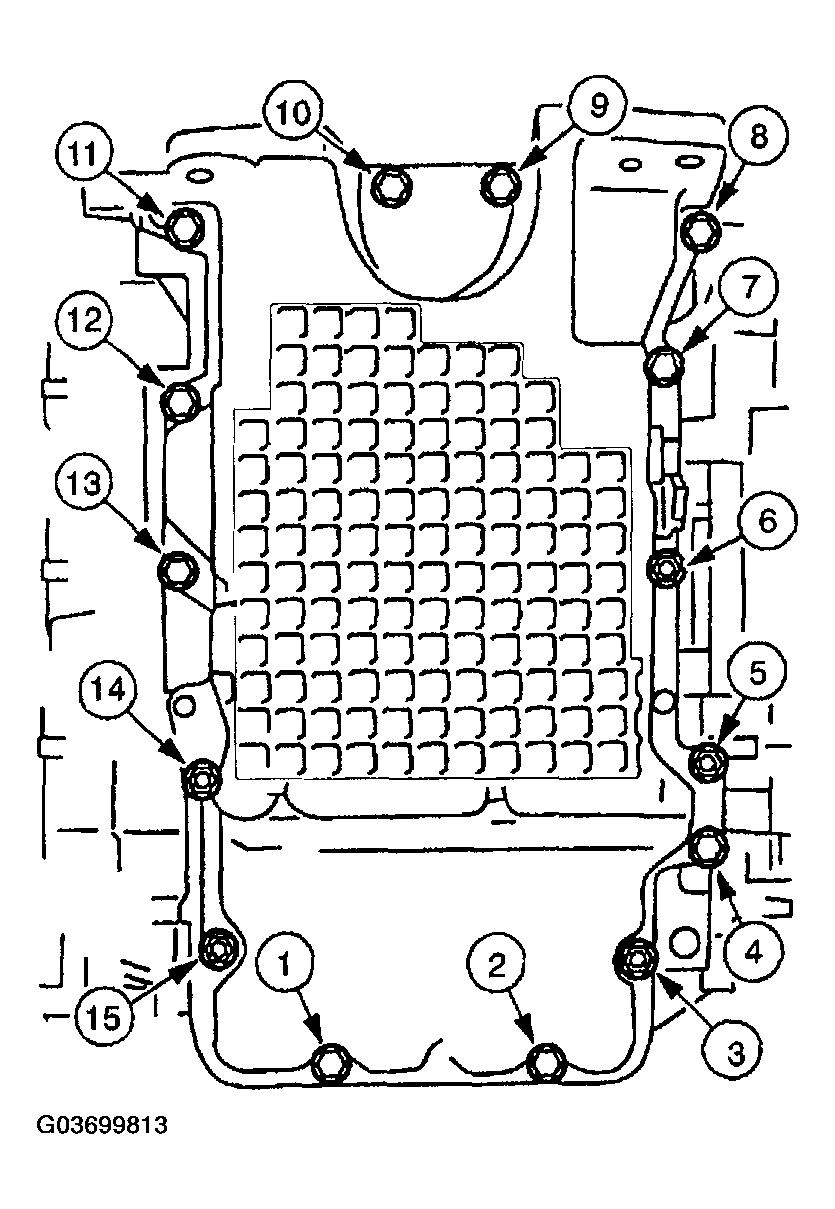

Fig 2: Loosening Oil Pan Bolts And Studs In Order
Courtesy of MAZDA MOTORS CORP.
