Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the crankshaft pulley using the SSTs.

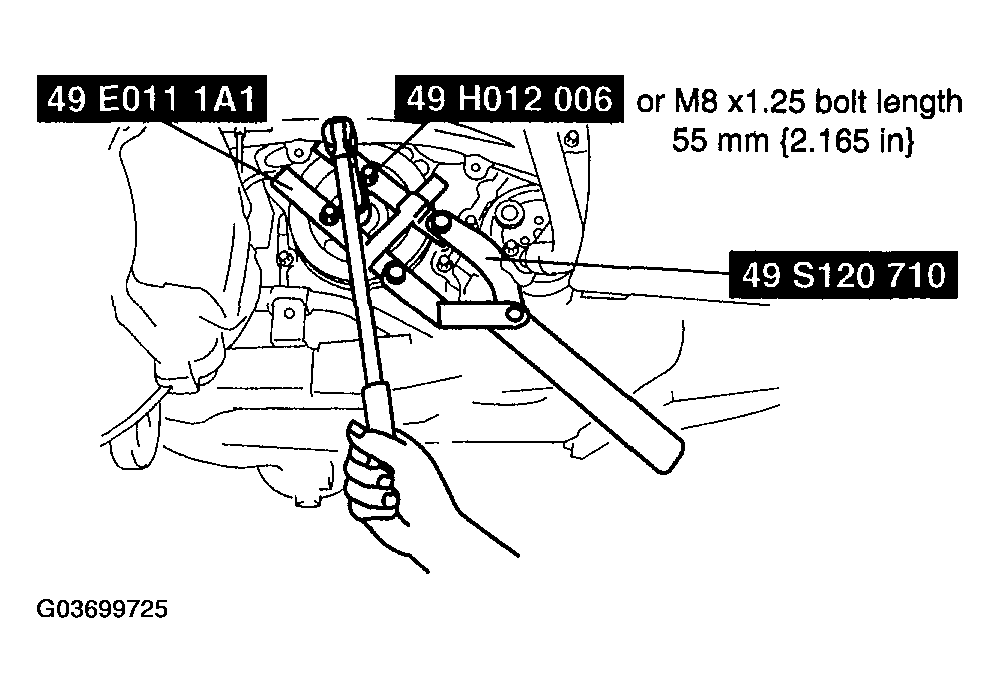

    Fig 1: Removing Crankshaft Pulley Lock Bolt
    G03699725Courtesy of MAZDA MOTORS CORP.
