Cylinder Head (LH) Removal Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in several passes in the order shown.

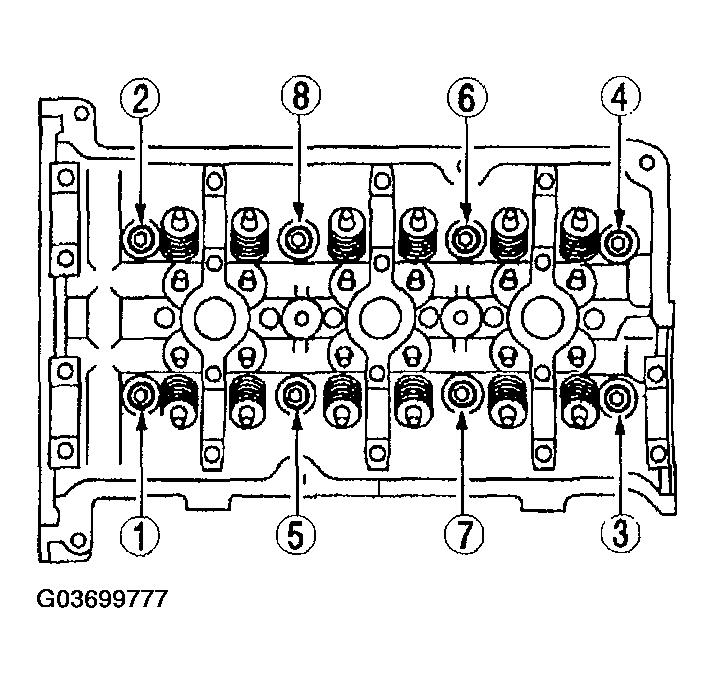

    Fig 1: Loosening Cylinder Head (LH) Bolts In Sequence
    G03699777Courtesy of MAZDA MOTORS CORP.
