Symptom Diagnosis: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional information to assist trouble shooting of transaxle malfunctions, see Fig 1 and Fig 2 .

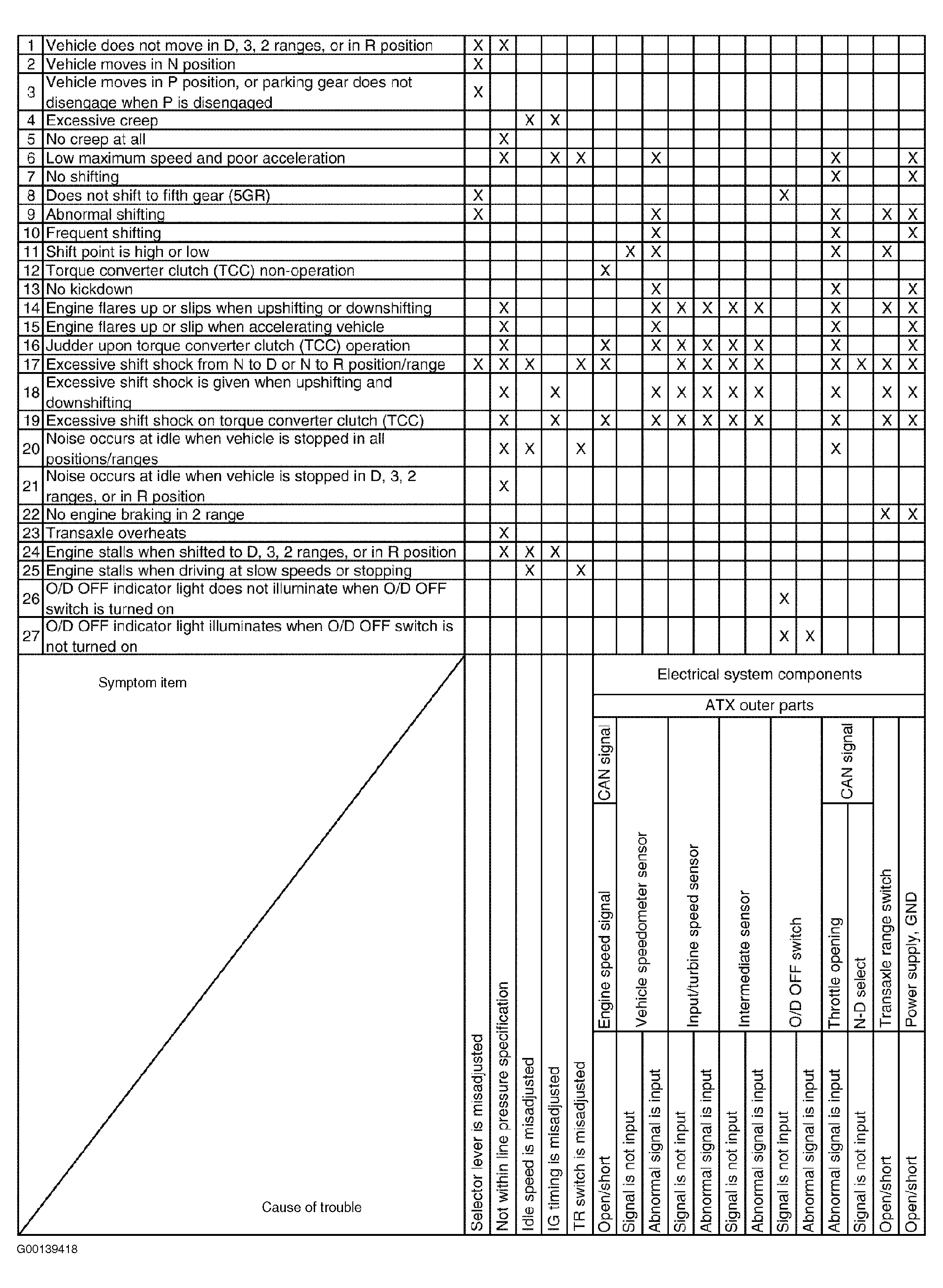

Fig 1: JA5A-EL Electronic Trouble Shooting Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

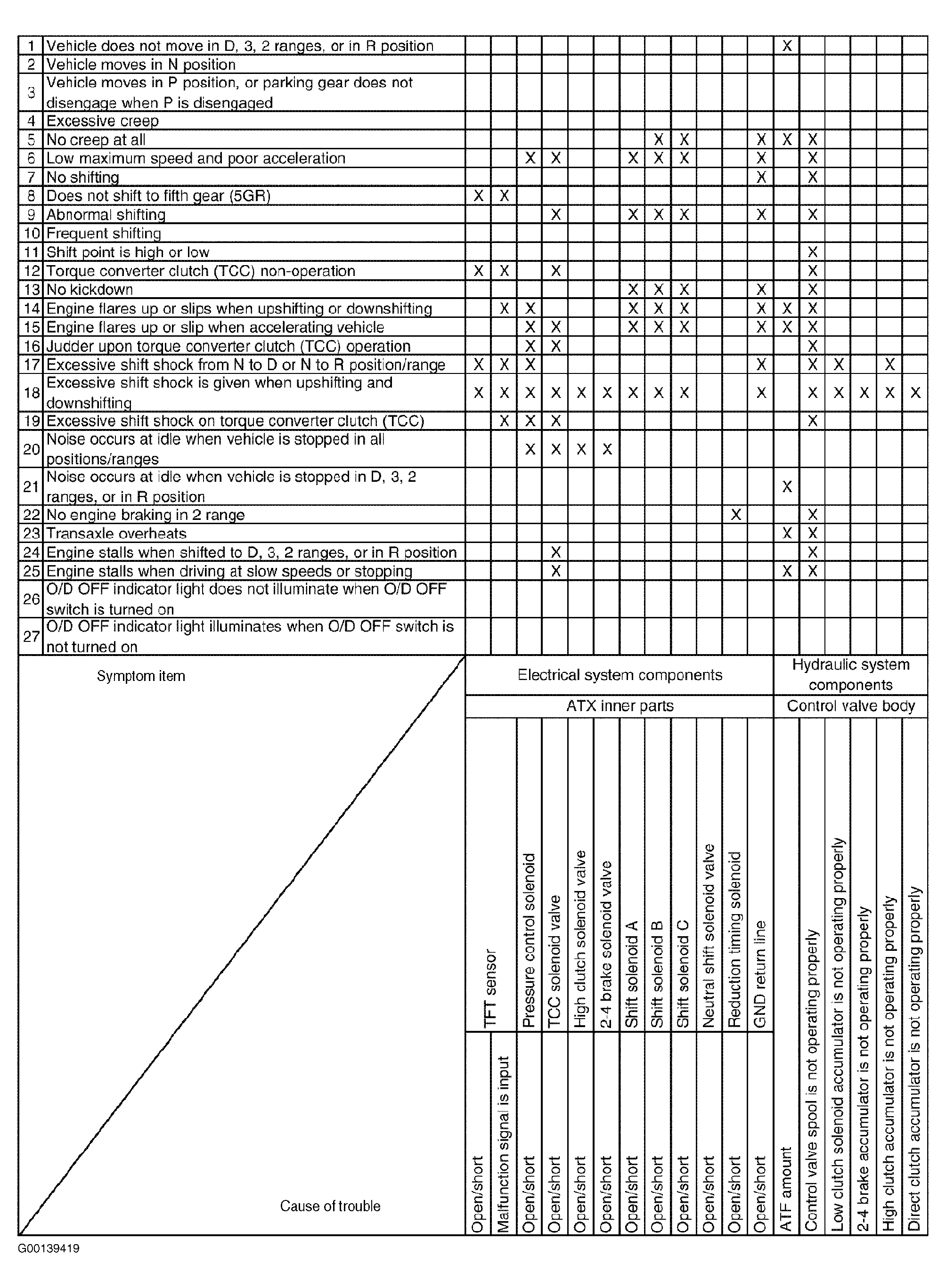

Fig 2: JA5A-EL Electronic Trouble Shooting Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
