Shift Speed Specifications

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For shift speed specifications, refer to appropriate illustrations. See Fig 1 and Fig 2 .

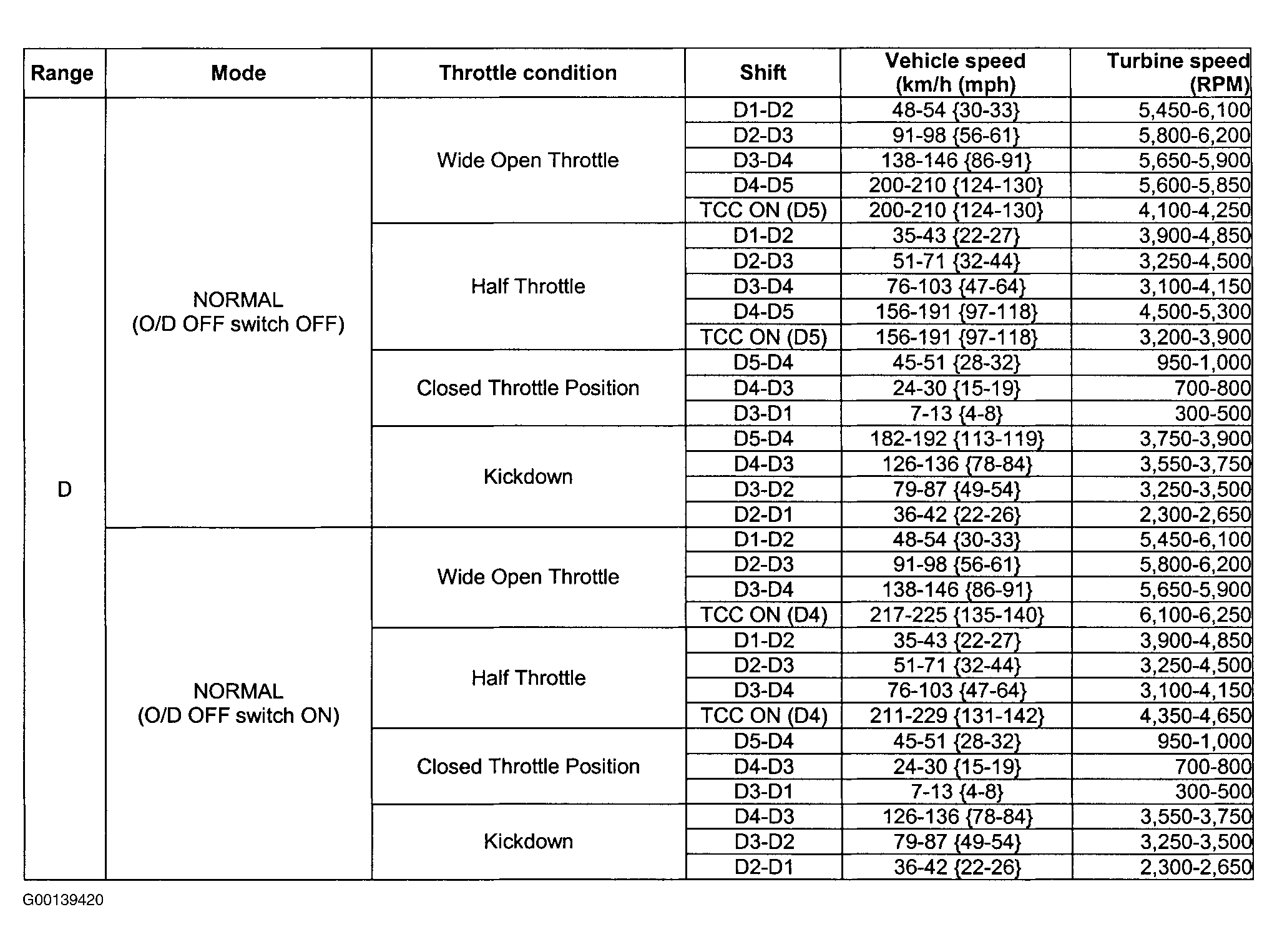

Fig 1: Shift Speed Specifications (MPV)

Courtesy of MAZDA MOTORS CORP.

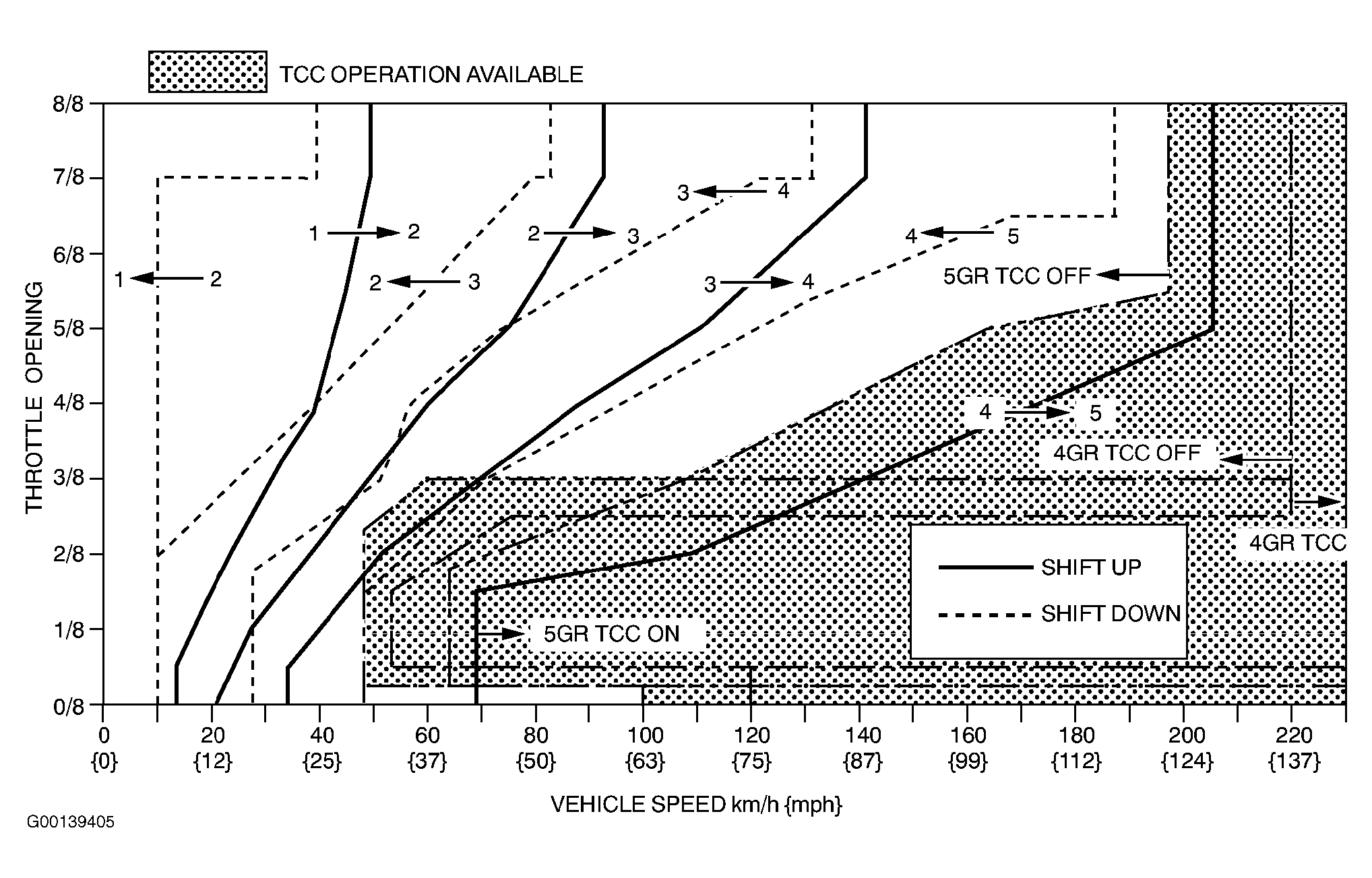

Fig 2: Shift Schedule Chart (MPV)

Courtesy of MAZDA MOTORS CORP.
