Rear Wiper Arm And Blade Adjustment [5-Door, Sport Wagon]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Operate the rear wiper motor to set the wiper in the park position.
Set the rear wiper arm onto the ceramic end line.

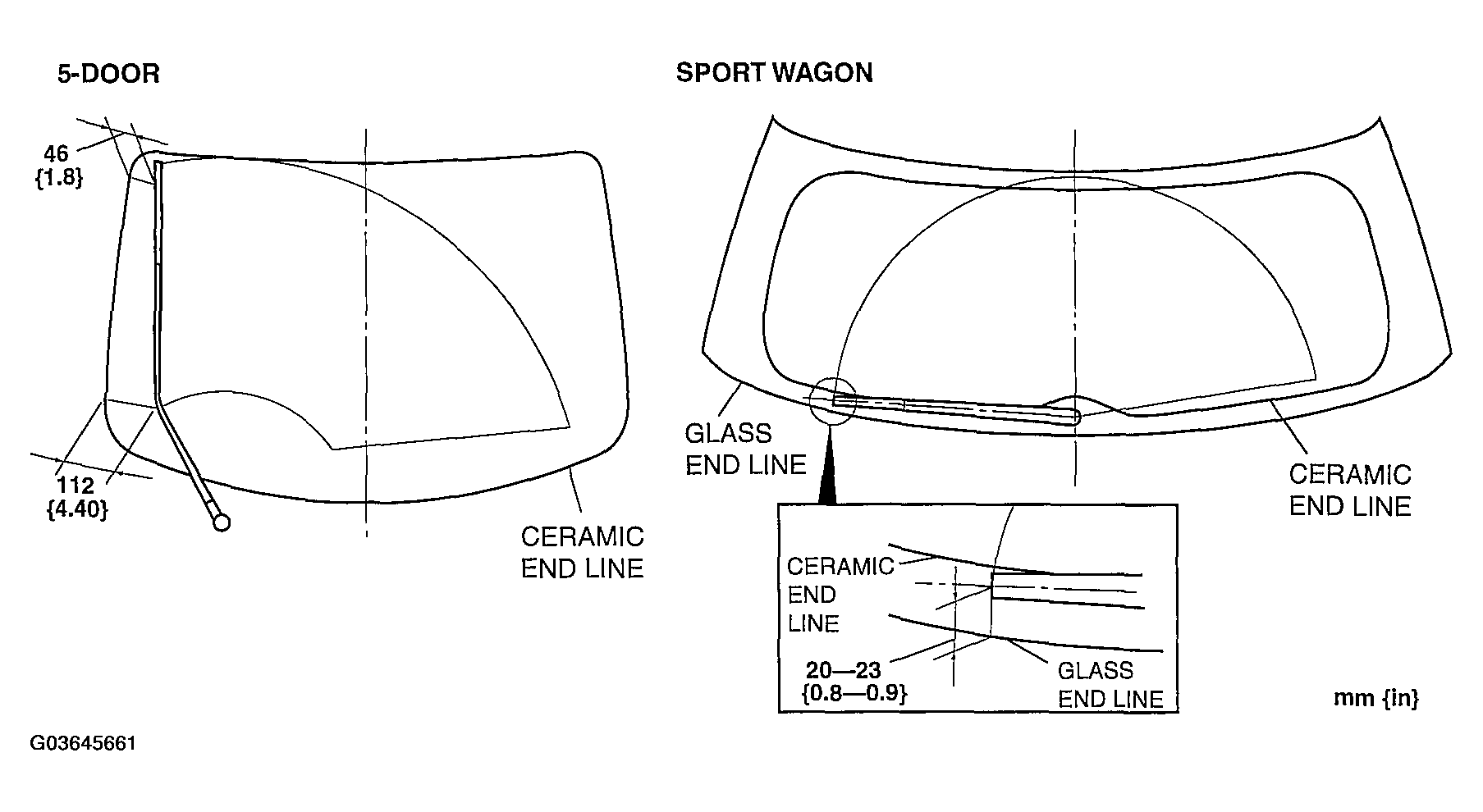

Fig 1: Adjusting Rear Wiper Arm (5-Door And Sport Wagon)
Courtesy of MAZDA MOTORS CORP.
