High-Mount Brake Light Removal/Installation [5-Door, Sport Wagon]: 5-Door

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION [5-DOOR, SPORT WAGON] .)
  3. Remove in the order indicated in the table.

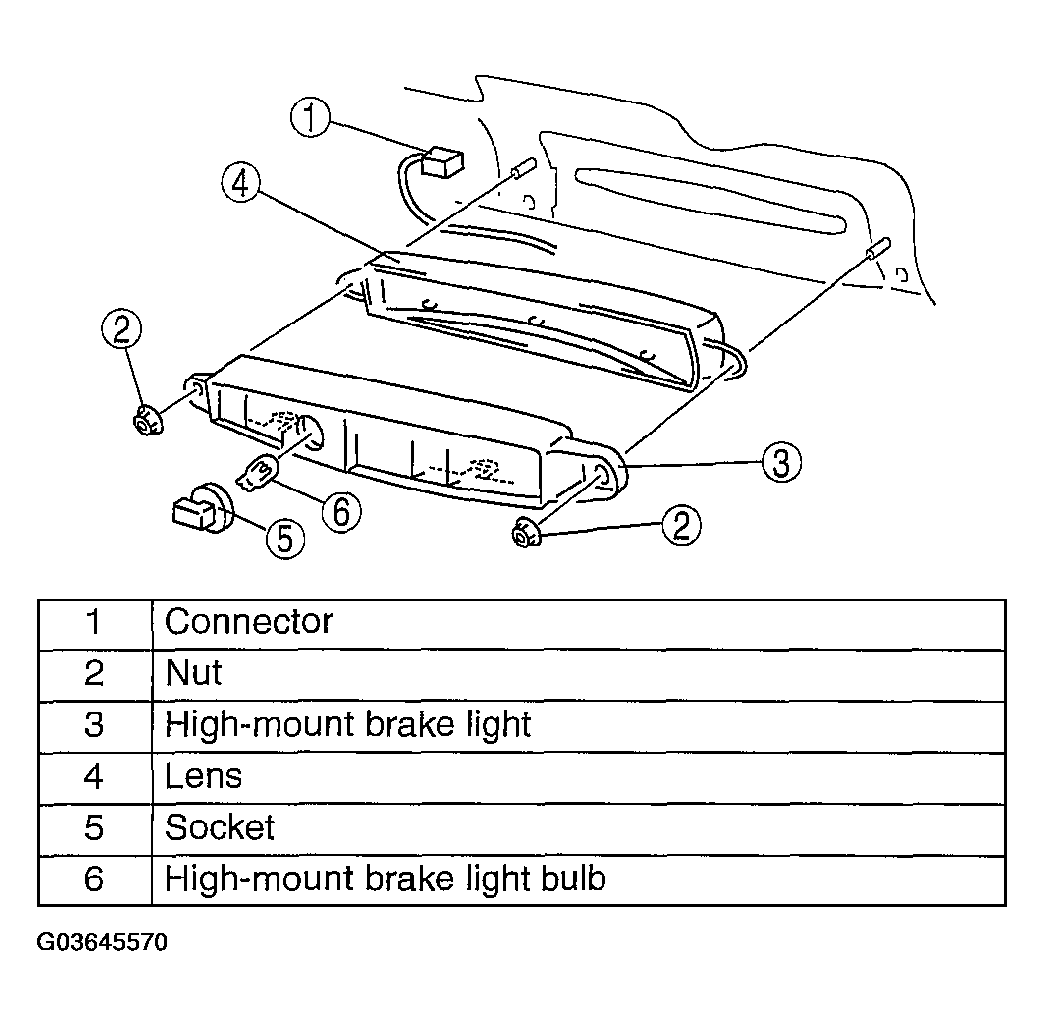

    Fig 1: High-Mount Brake Light Removal Sequence (5-Door)
    G03645570Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
