Rear Seat Removal/Installation [5-Door, Sport Wagon]: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

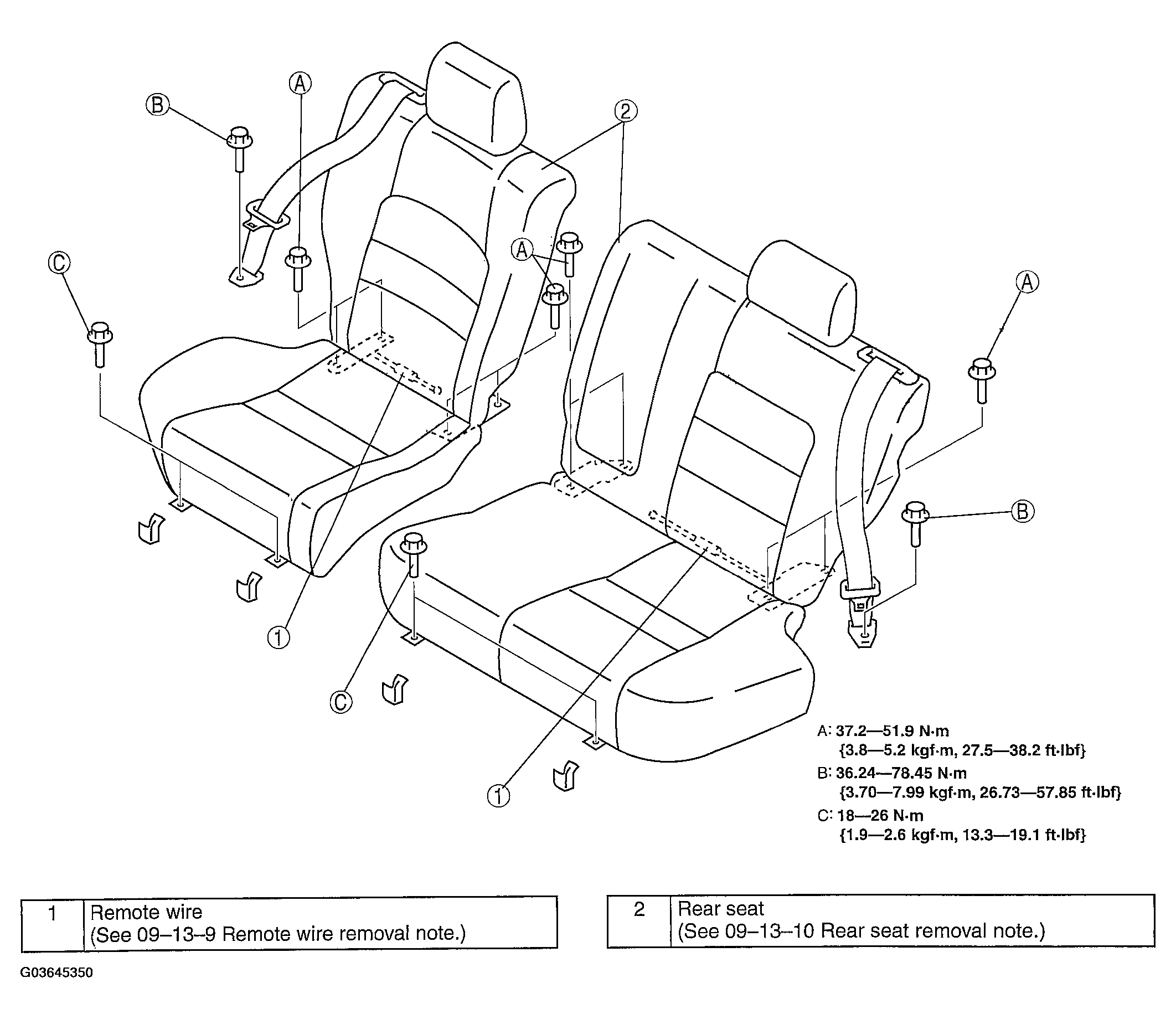

    Fig 1: Rear Seat Removal Sequence [5-Door, Sport Wagon] (Torque Specs)
    G03645350Courtesy of MAZDA MOTORS CORP.
