Curtain air bag module (Sedan)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [SEDAN]  .)
  2. Secure the curtain air bag module in a vise, and cut off the deployment section, as shown in the figure.
    WARNING:
    • Be sure not to collapse the pipe on the side where it is cut. If it is collapsed, the interior pressure of the pipe will build up and can cause it to explode during air bag module deployment.
      Fig 1: Cutting Off Deployment Section Of Curtain Air Bag Module
      G03645171Courtesy of MAZDA MOTORS CORP.
  3. Tie the side air bag module to the tire with the module facing the center of the tire. Wrap the wire through the tire and around the bracket at least four times  .
    WARNING:
    • If the air bag module is not properly installed to the tire, serious injury may occur when the module is deployed. When installing the air bag module to the tire, make sure the module is facing the downward.
      Fig 2: Tying Curtain Air Bag Module To Tire
      G03645172Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST  (Adapter harness) to the curtain air bag module as shown in the figure.
    Fig 3: Connecting SST (Adapter Harness) To Curtain Air Bag Module
    G03645173Courtesy of MAZDA MOTORS CORP.
  5. Stack the tire with the curtain air bag module on top of two tires. Stack a tire on top of three tires. Stack another tire that has a wheel on top of the four tires.

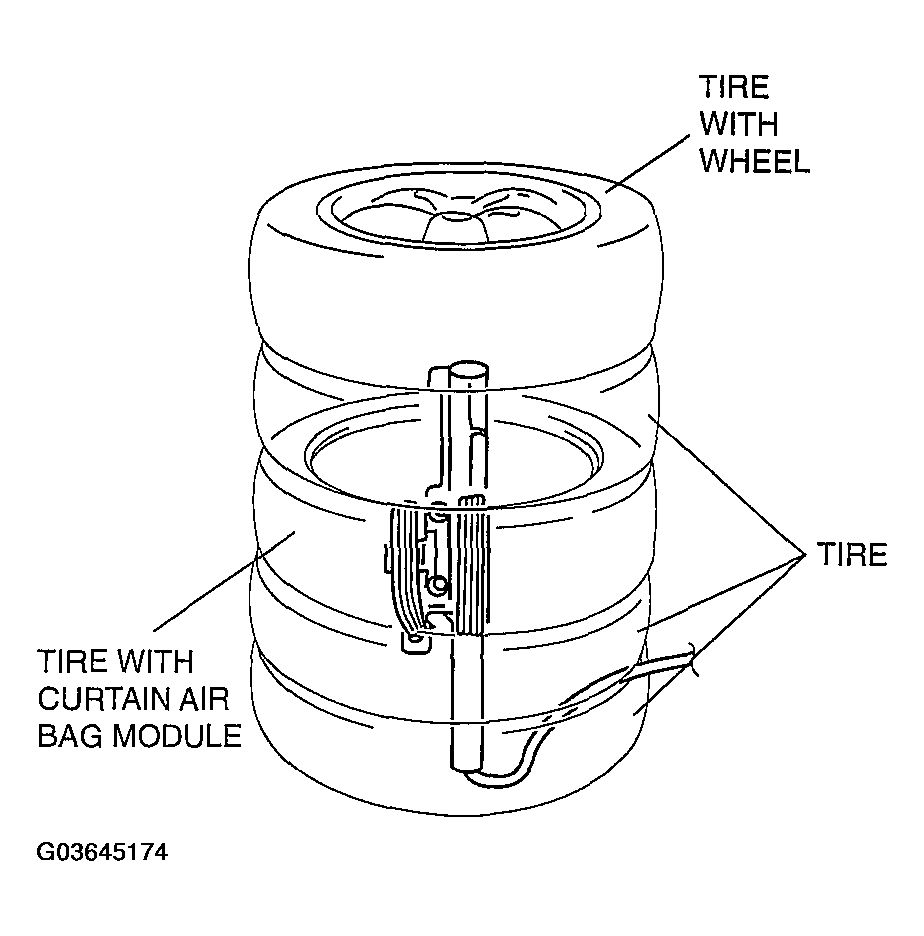

    Fig 4: Stacking Tires Around Curtain Air Bag Module
    G03645174Courtesy of MAZDA MOTORS CORP.
  6. Tie all tires together with wire.

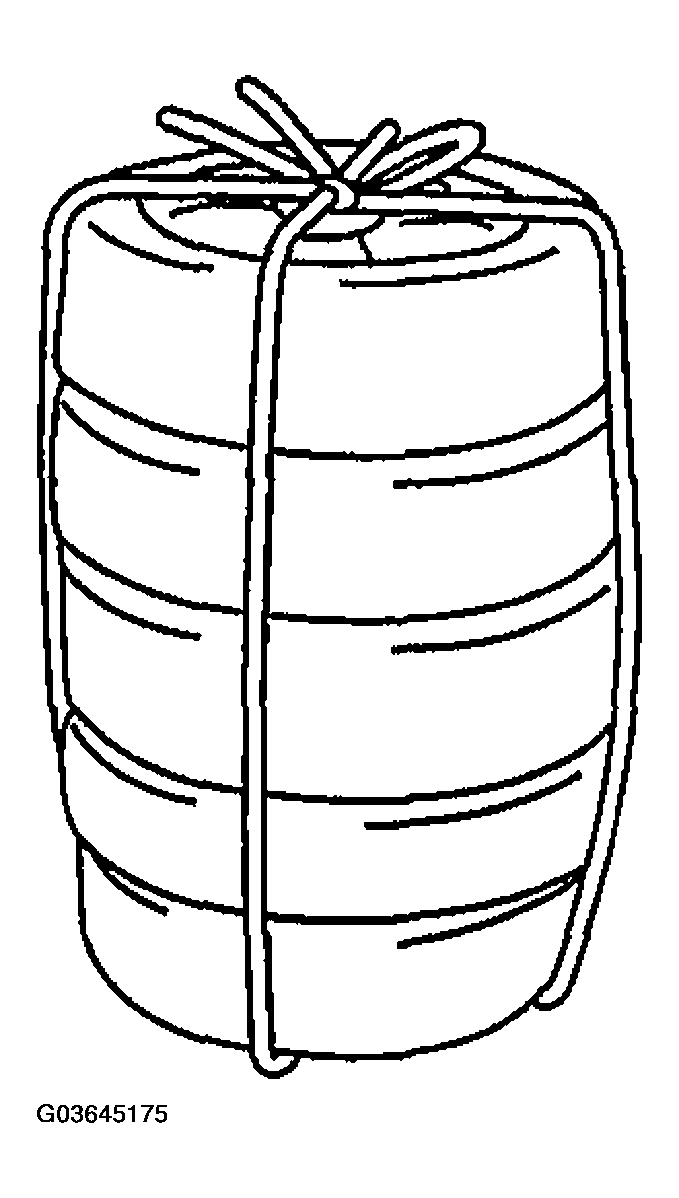

    Fig 5: Tying All Tires Together With Wire
    G03645175Courtesy of MAZDA MOTORS CORP.
  7. Connect the SST  (Deployment tool) to the SST  (Adapter harness).
    Fig 6: Connecting SST (Adapter Harness) To SST (Deployment Module)
    G03645176Courtesy of MAZDA MOTORS CORP.
  8. Connect the red clip of the SST  (Deployment tool) to the positive battery terminal and the black clip to the negative battery terminal.
  9. Verify that the red light on the SST  (Deployment tool) is illuminated.
  10. Make sure all persons are standing at least 6 m {20 ft}  from the vehicle.
  11. Press the activation switch on the SST  (Deployment tool) to deploy the curtain air bag module.
    Fig 7: Locating Activation Switch On SST
    G03645177Courtesy of MAZDA MOTORS CORP.
