Vehicle speed at shift point table

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

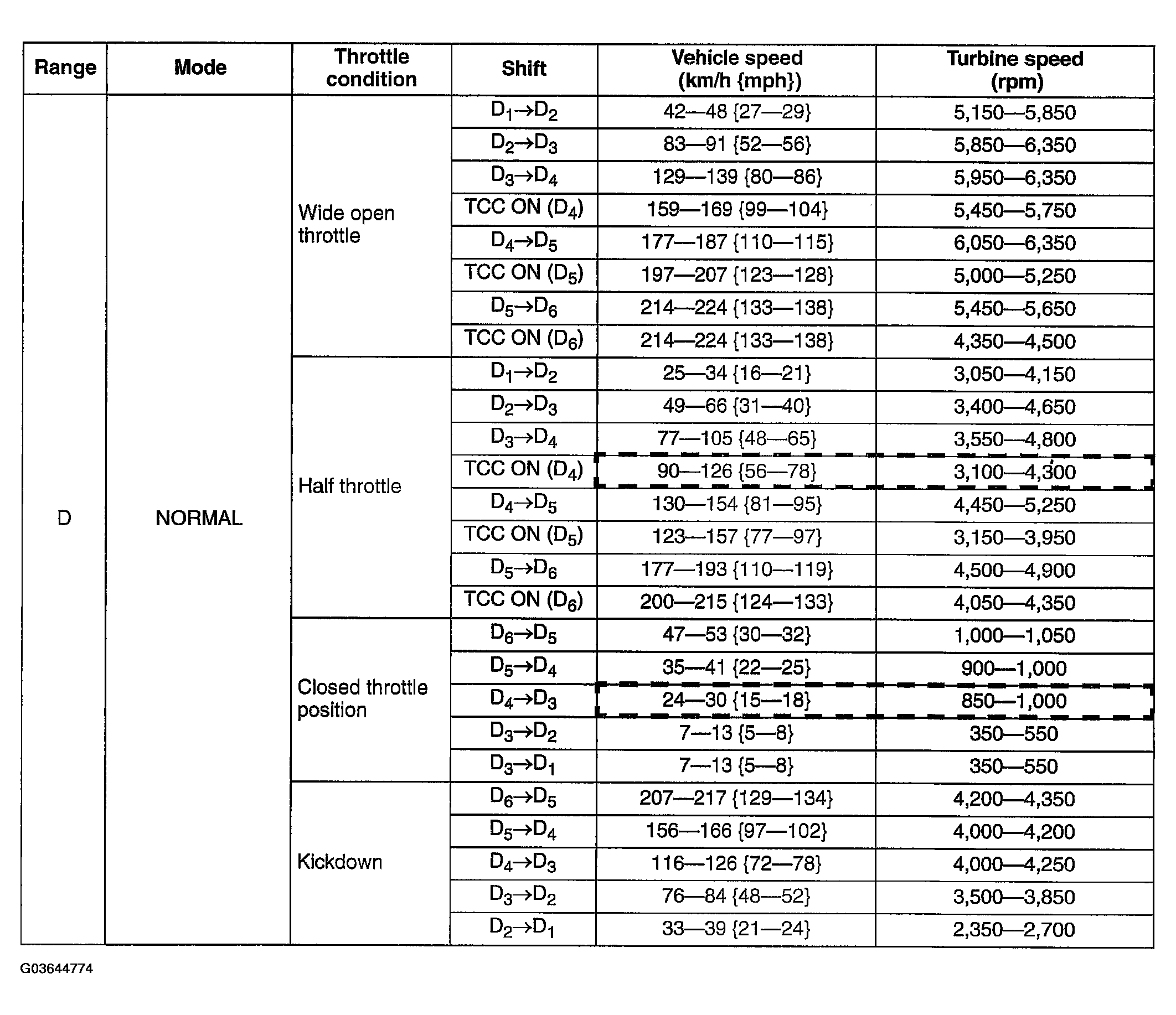

Fig 1: Vehicle Speed At Shift Point Table (Normal)

Courtesy of MAZDA MOTORS CORP.

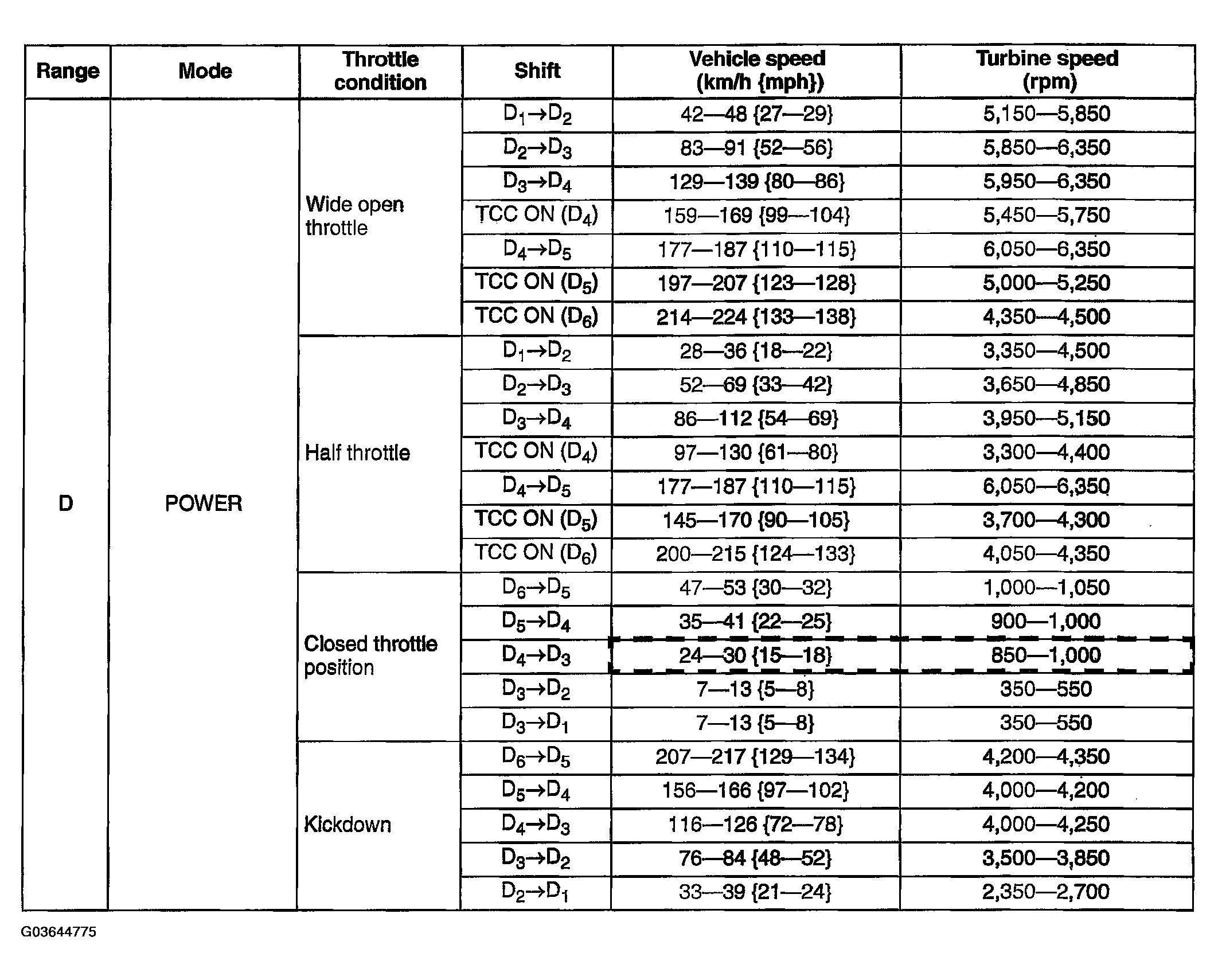

Fig 2: Vehicle Speed At Shift Point Table (Power)

Courtesy of MAZDA MOTORS CORP.
