Oil Cooler Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

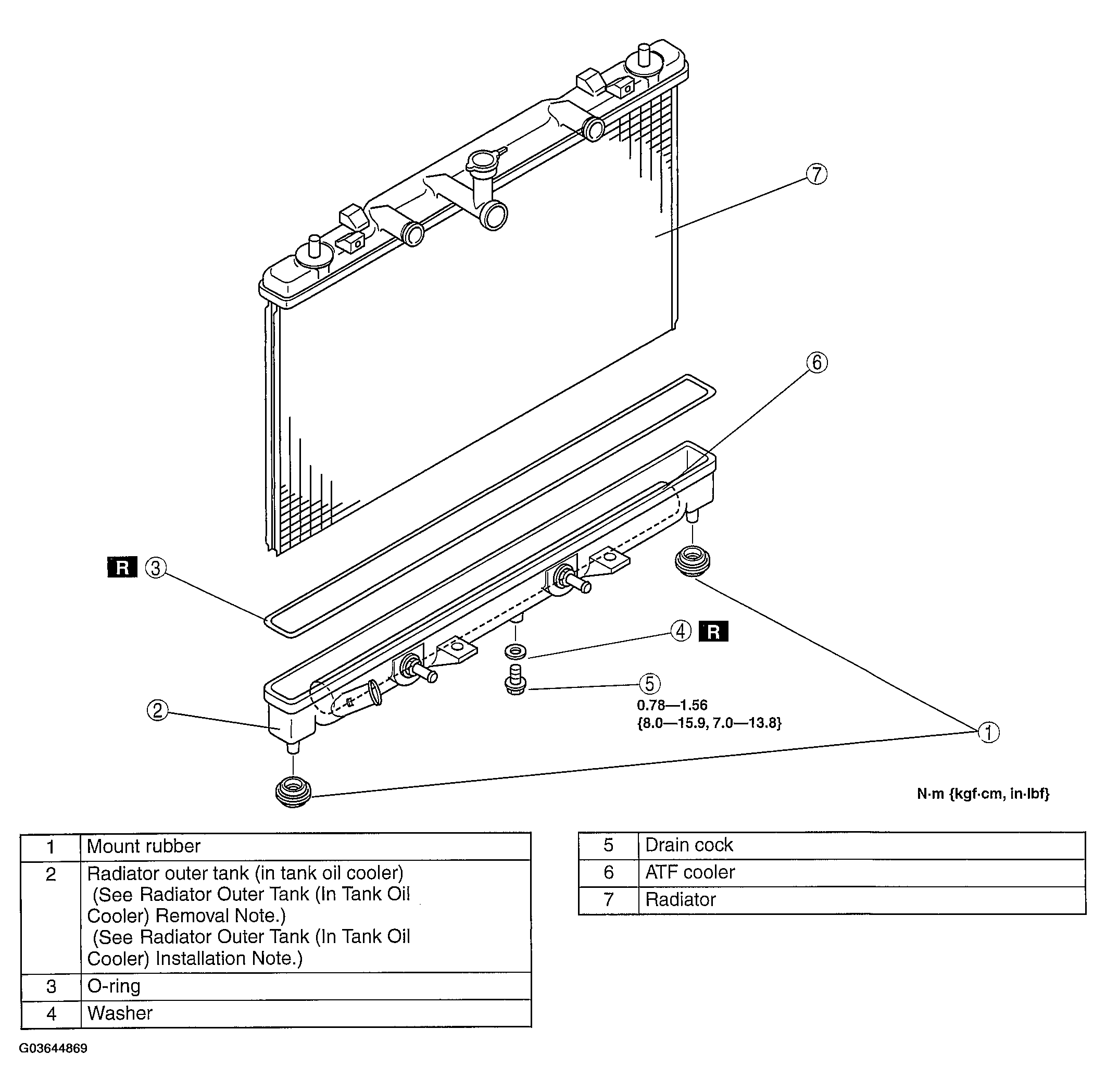

Fig 1: Oil Cooler Disassembling Sequence (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
