Transaxle Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the transaxle on a jack.

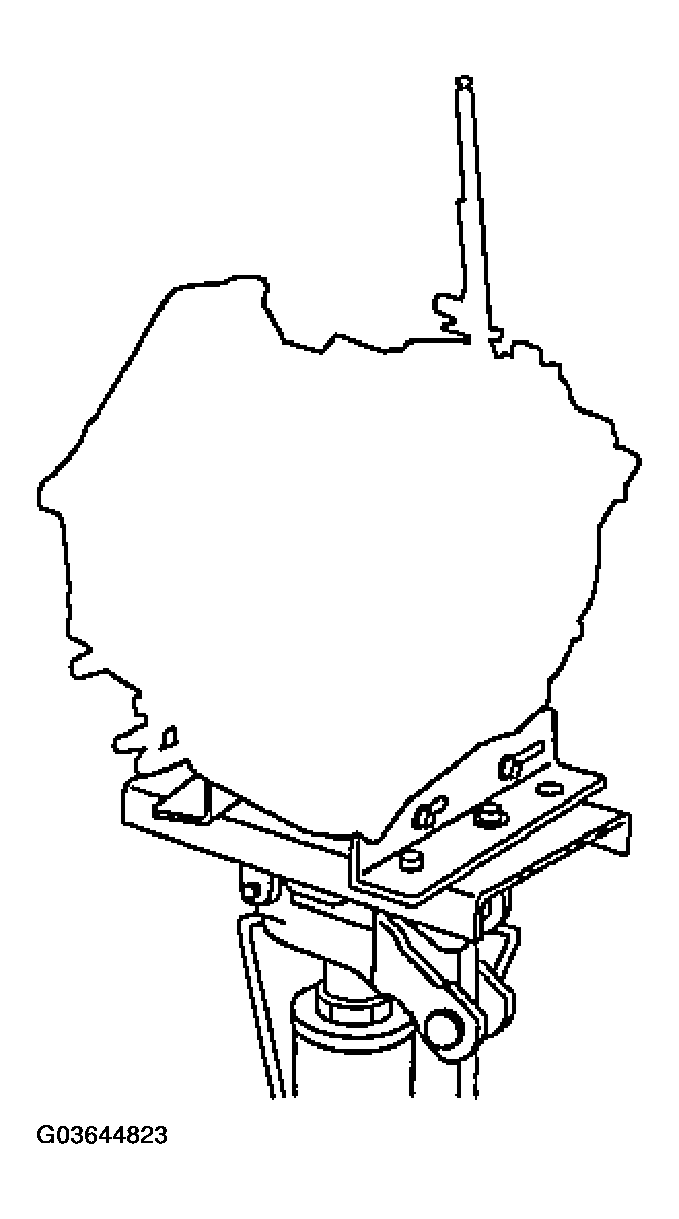

    Fig 1: Supporting Transaxle On Jack
    G03644823Courtesy of MAZDA MOTORS CORP.
  2. Remove the transaxle mounting bolts.
  3. Remove the transaxle.
