Torque Converter Nuts Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Align the holes by turning the torque converter.
Insert a screwdriver through the converter housing service hole, and lock the drive plate.
CAUTION:
- Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.

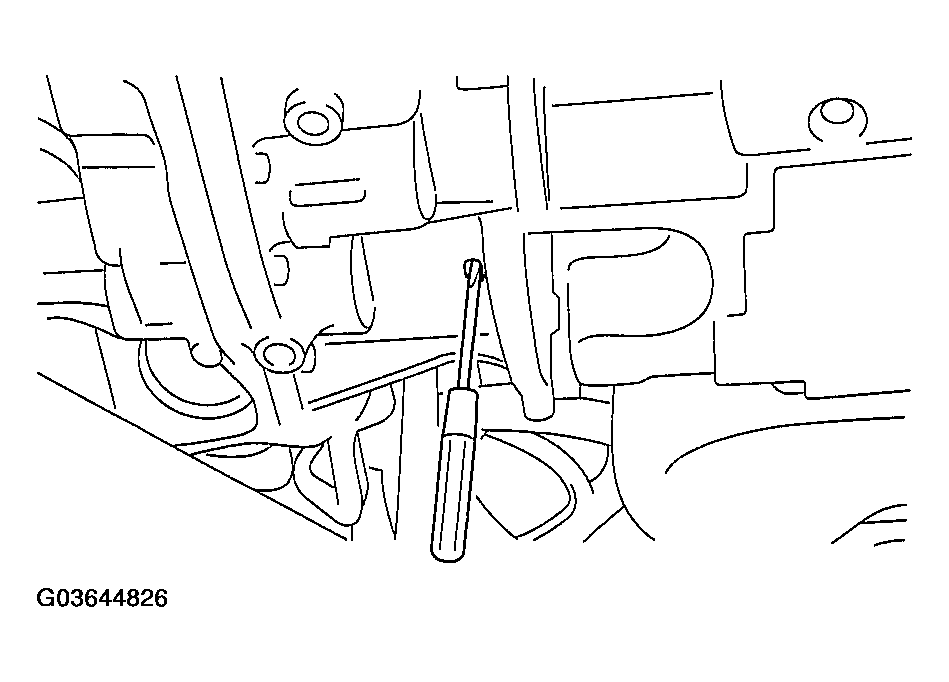

  Fig 1: Locking Drive Plate
  Courtesy of MAZDA MOTORS CORP.
Tighten the torque converter mounting nuts.
Tightening torque 34-44 N.m {3.5-4.4 kgf.m, 25-32 ft.lbf}

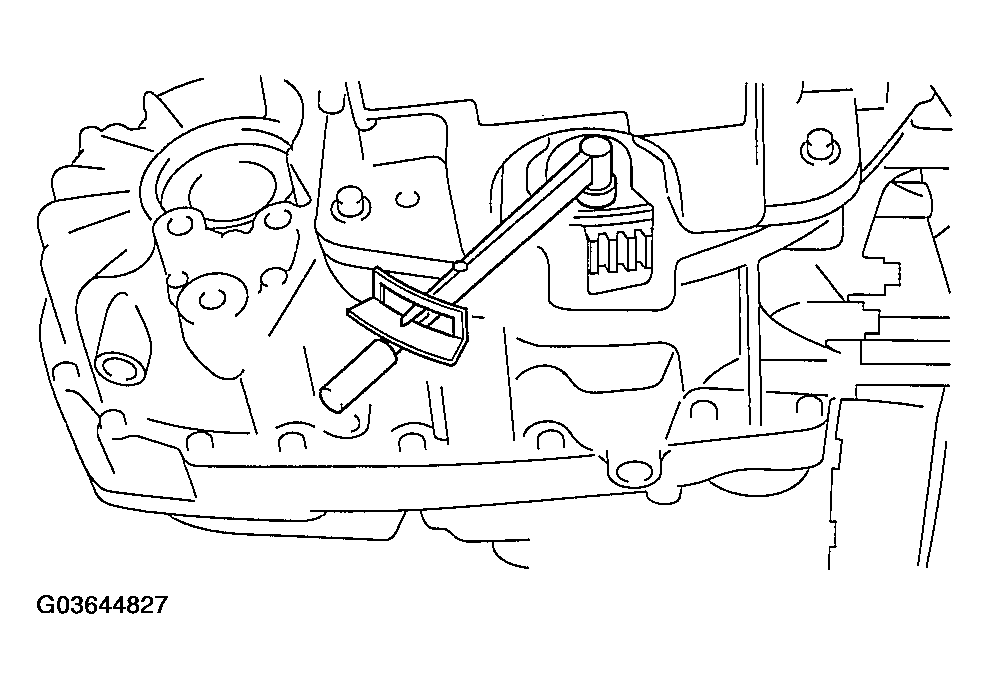

Fig 2: Tightening Torque Converter Mounting Nuts
Courtesy of MAZDA MOTORS CORP.
