No. 4 Engine Mount Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the No. 4 engine mount bracket is installed as shown in the figure.
Temporarily tighten bolt D.

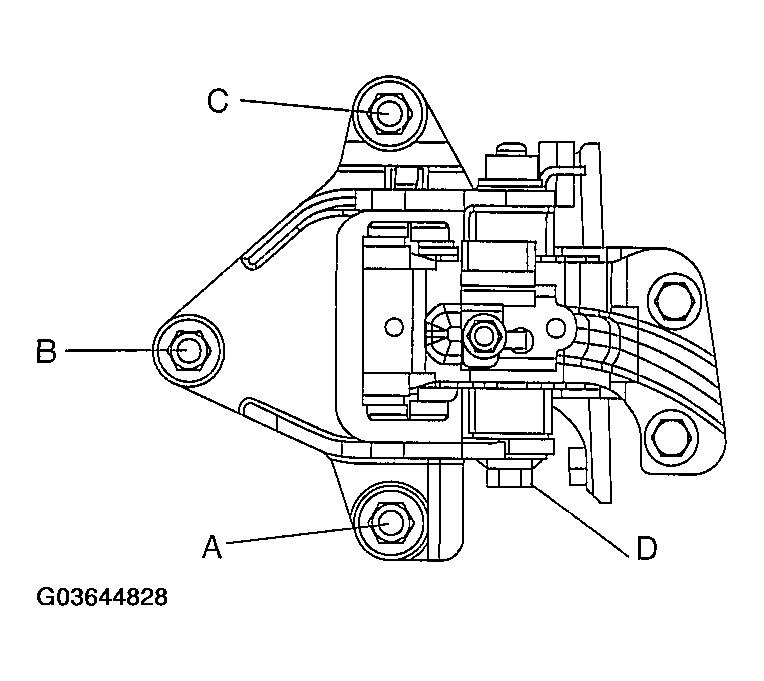

Fig 1: Identifying No. 4 Engine Mount Bolts
Courtesy of MAZDA MOTORS CORP.
Set the transaxle on a garage jack and lift it upward.

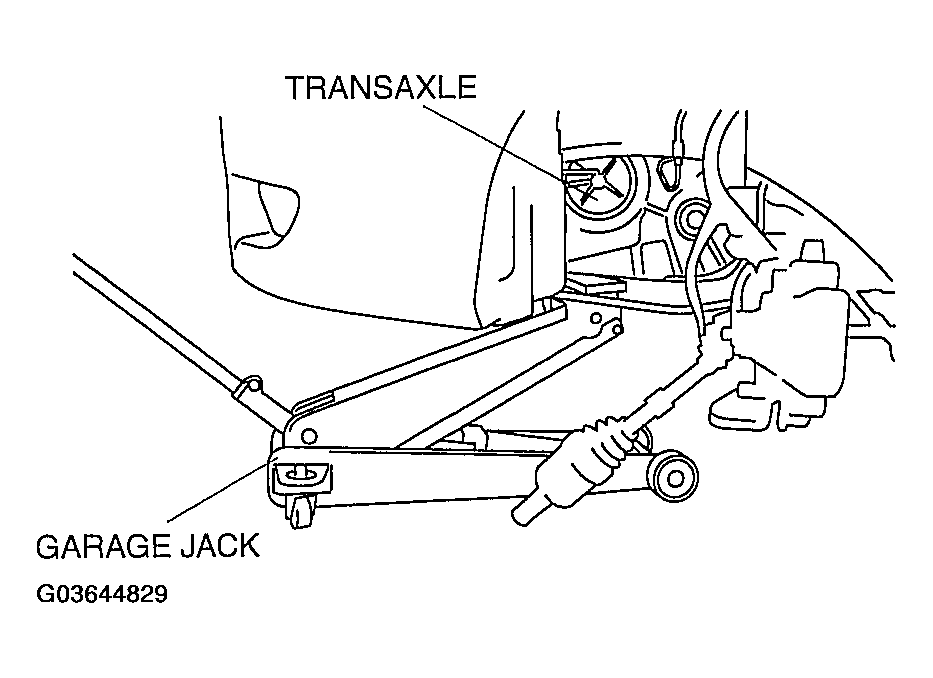

Fig 2: Setting Transaxle On Garage Jack
Courtesy of MAZDA MOTORS CORP.
Align the hole of the No. 4 engine mount bracket with the stud bolts of transaxle.
Temporarily tighten bolt A and nuts B, C.

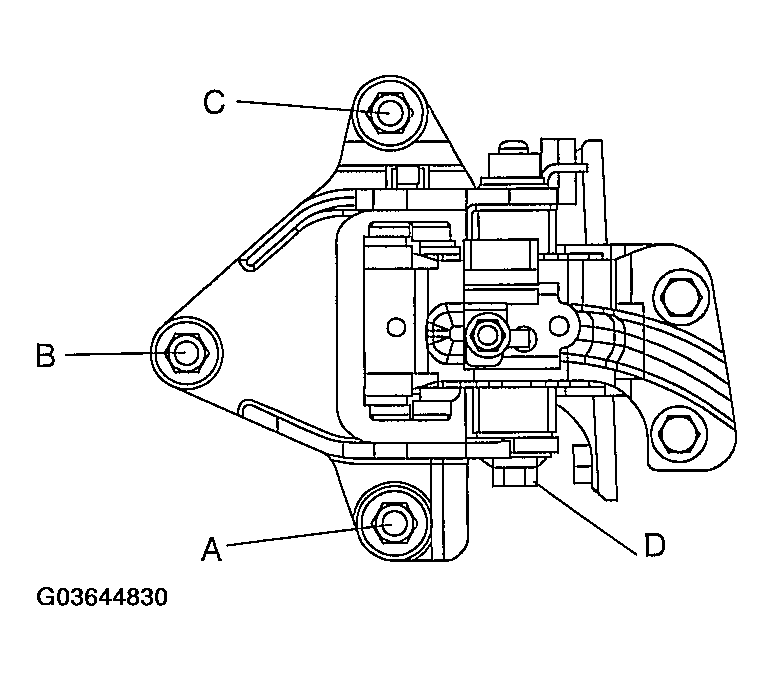

Fig 3: Identifying No. 4 Engine Mount Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten nuts B and C in the order of B-->C, and then bolt A.
Tighten bolt D.
Tightening torque A, B, C: 66.6-93.1 N.m {6.8-9.4 kgf.m, 49.2-68.6 ft.lbf}

D: 85.3-116.6 N.m {8.7-11.8 kgf.m, 62.9-85.9 ft.lbf}
