Solenoid Valve Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove the control valve body. (See CONTROL VALVE BODY REMOVAL .)
  4. Remove the solenoid valve(s).
    Fig 1: Identifying Control Valve Body Solenoids
    G03644719Courtesy of MAZDA MOTORS CORP.
  5. Apply ATF to a new O-ring and install it on the solenoid valve.
  6. Install the solenoid valve in the control valve body.

    Tightening torque

    7.8-10.8 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}

  7. Install the control valve body. (See CONTROL VALVE BODY REMOVAL .)

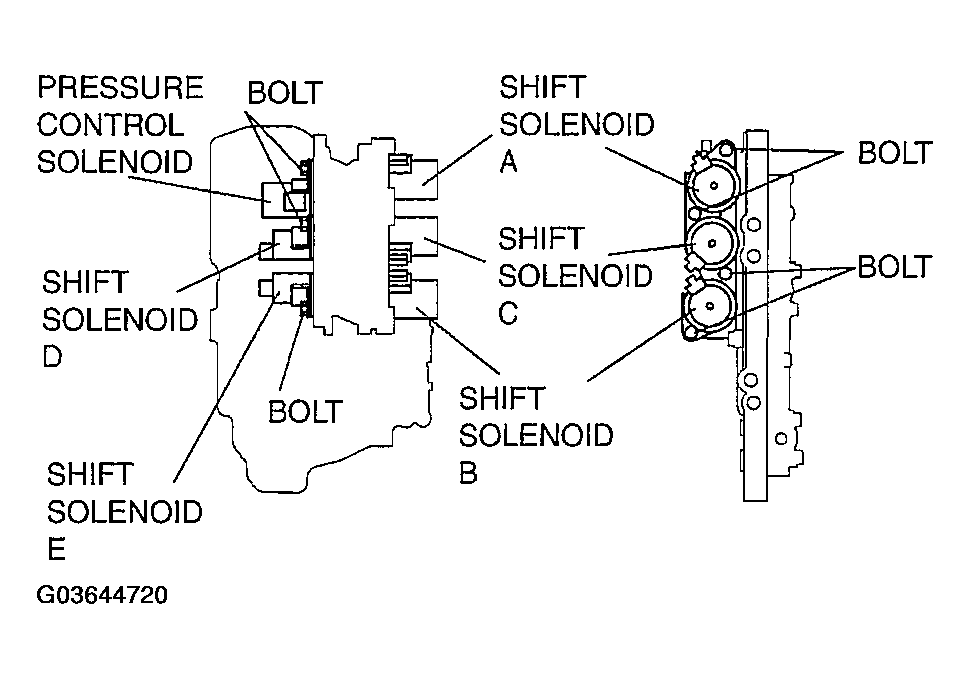

    Fig 2: Identifying Control Valve Body Components
    G03644720Courtesy of MAZDA MOTORS CORP.
  8. Install the under cover.
  9. Connect the negative battery cable.
  10. Add ATF and, with the engine idling, inspect the ATF level and inspect for leakage. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL INSPECTION .)
  11. Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST .)
  12. Carry out the road test. (See ROAD TEST .)
