Clutch Master Cylinder Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

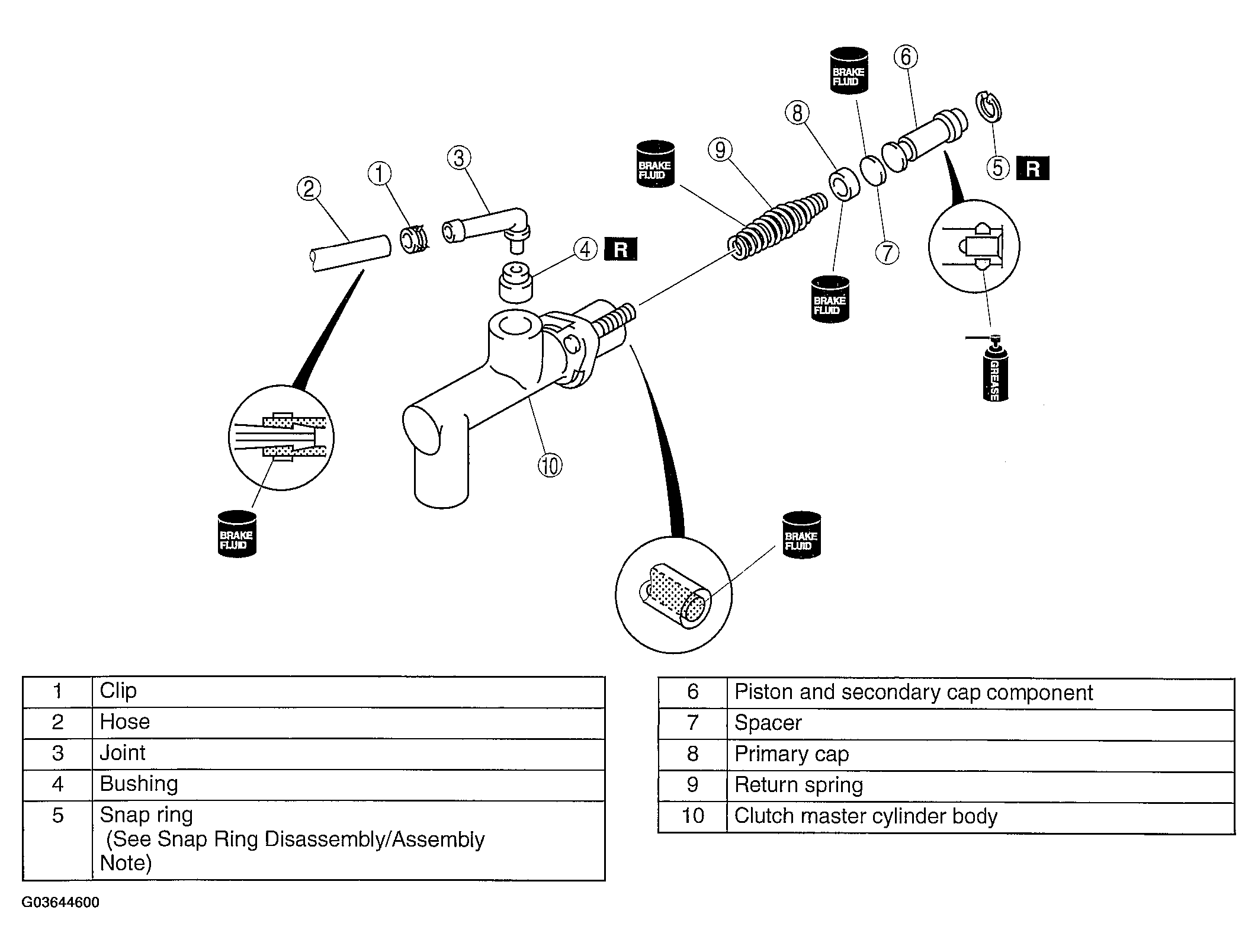

    Fig 1: Identifying Clutch Master Cylinder Disassembly/Assembly Sequence
    G03644600Courtesy of MAZDA MOTORS CORP.
