Clutch Cover Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the wear of the diaphragm spring fingers.
- If not as specified, replace the clutch cover.
  Depth

  0.6 mm {0.024 in} max.

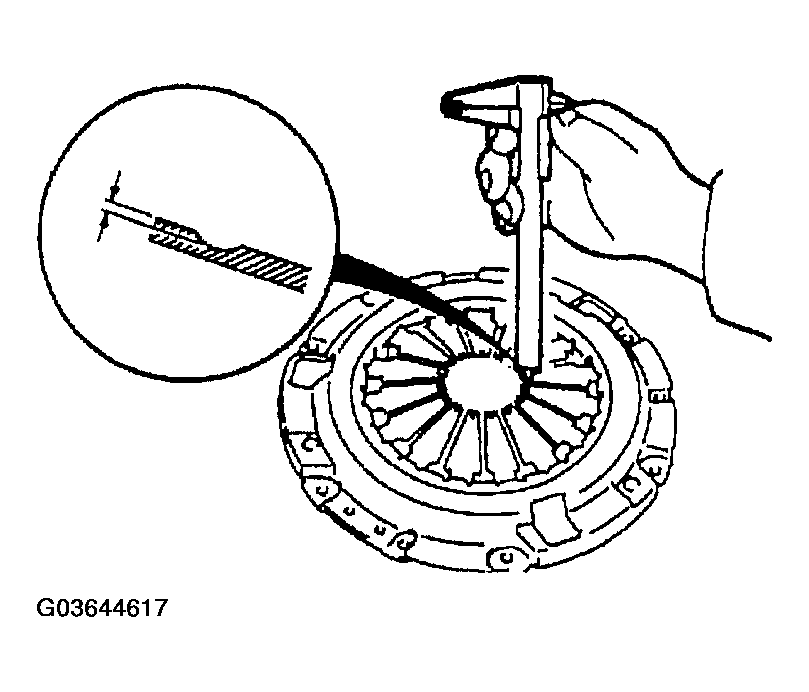

  Fig 1: Measuring Wear Of Diaphragm Spring Fingers
  Courtesy of MAZDA MOTORS CORP.
Measure the flatness of the pressure plate with a straight edge and a feeler gauge.
- If not as specified, replace the clutch cover.
  Clearance

  0.3 mm {0.012 in} max.
When checking the diaphragm spring fingers, mount a dial indicator on the cylinder block.

Fig 2: Measuring Flatness Of Pressure Plate
Courtesy of MAZDA MOTORS CORP.
Rotate the flywheel and check for misaligned diaphragm spring fingers.
- If not as specified, replace the clutch cover.
  Misalignment

  0.6 mm {0.024 in} max.

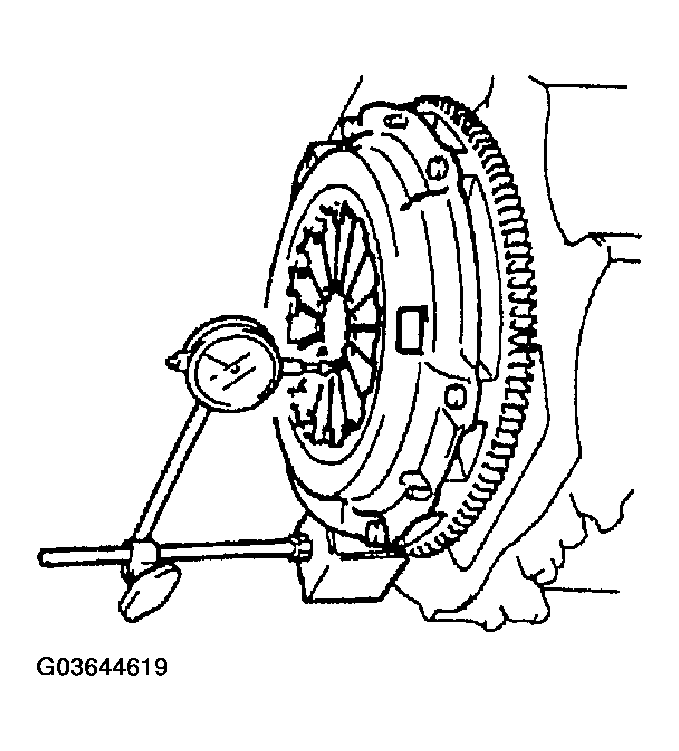

  Fig 3: Rotating Flywheel And Checking For Misaligned Diaphragm Spring Fingers
  Courtesy of MAZDA MOTORS CORP.
