DTC C1145, C1155, C1165, C1175: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When attaching the tester lead to the ABS/TCS HU/CM harness connector, the SST (49 G066 001 [Adapter harness]) must be used. (See ABS/TCS HU/CM INSPECTION .)

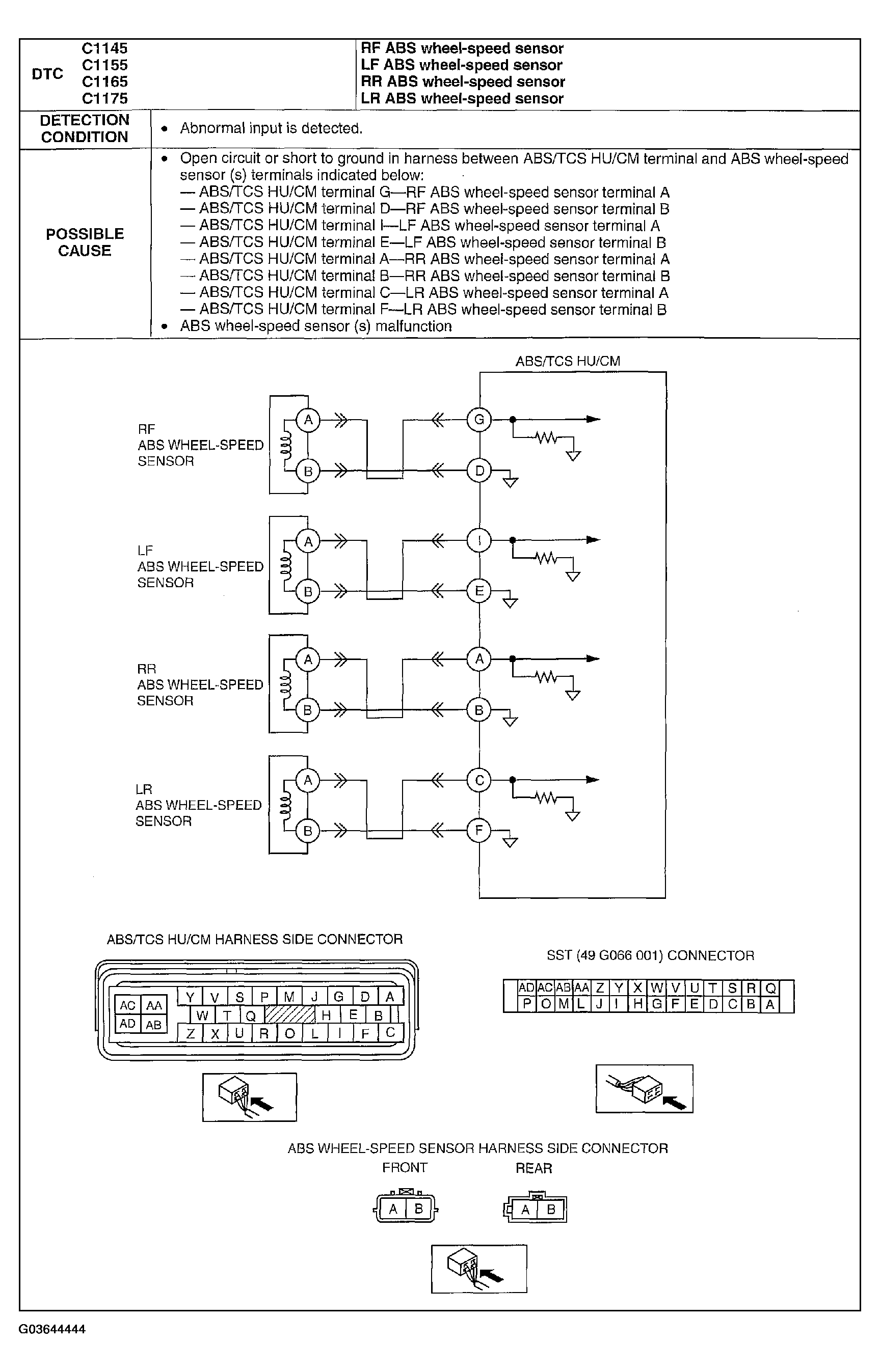

Fig 1: DTC C1145, C1155, C1165, C1175 Detection Condition And Possible Causes
Courtesy of MAZDA MOTORS CORP.
