ABS Sensor Rotor (With ABS) Assembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set a new ABS sensor rotor on the drive shaft and press it on using the SSTs.

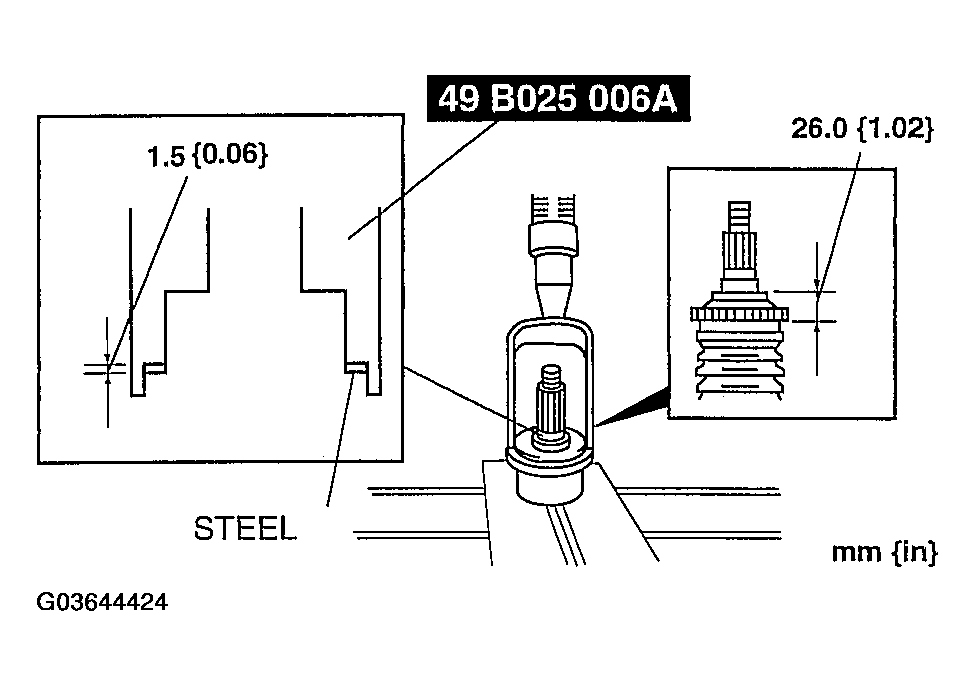

    Fig 1: Setting New ABS Sensor Rotor On Drive Shaft
    G03644424Courtesy of MAZDA MOTORS CORP.
