Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

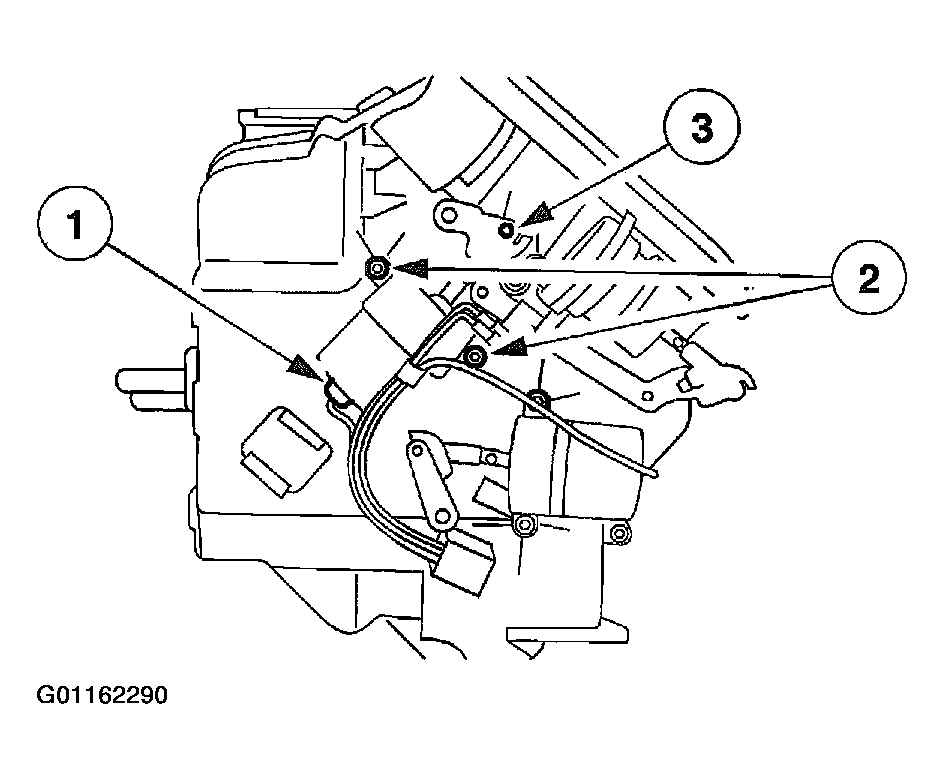

Fig 1: Removing/Installing Vacuum Control Motor
G01162290Courtesy of MAZDA MOTORS CORP.
  1. Remove the vacuum control motor.
    1. Disconnect the vacuum line.
    2. Remove the two screws.
    3. Disconnect the vacuum control motor from the door lever.
  2. To install, reverse the removal procedure.
