Pinpoint Test 8: The Blower Motor Operates Continuously In High Speed: Notes
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

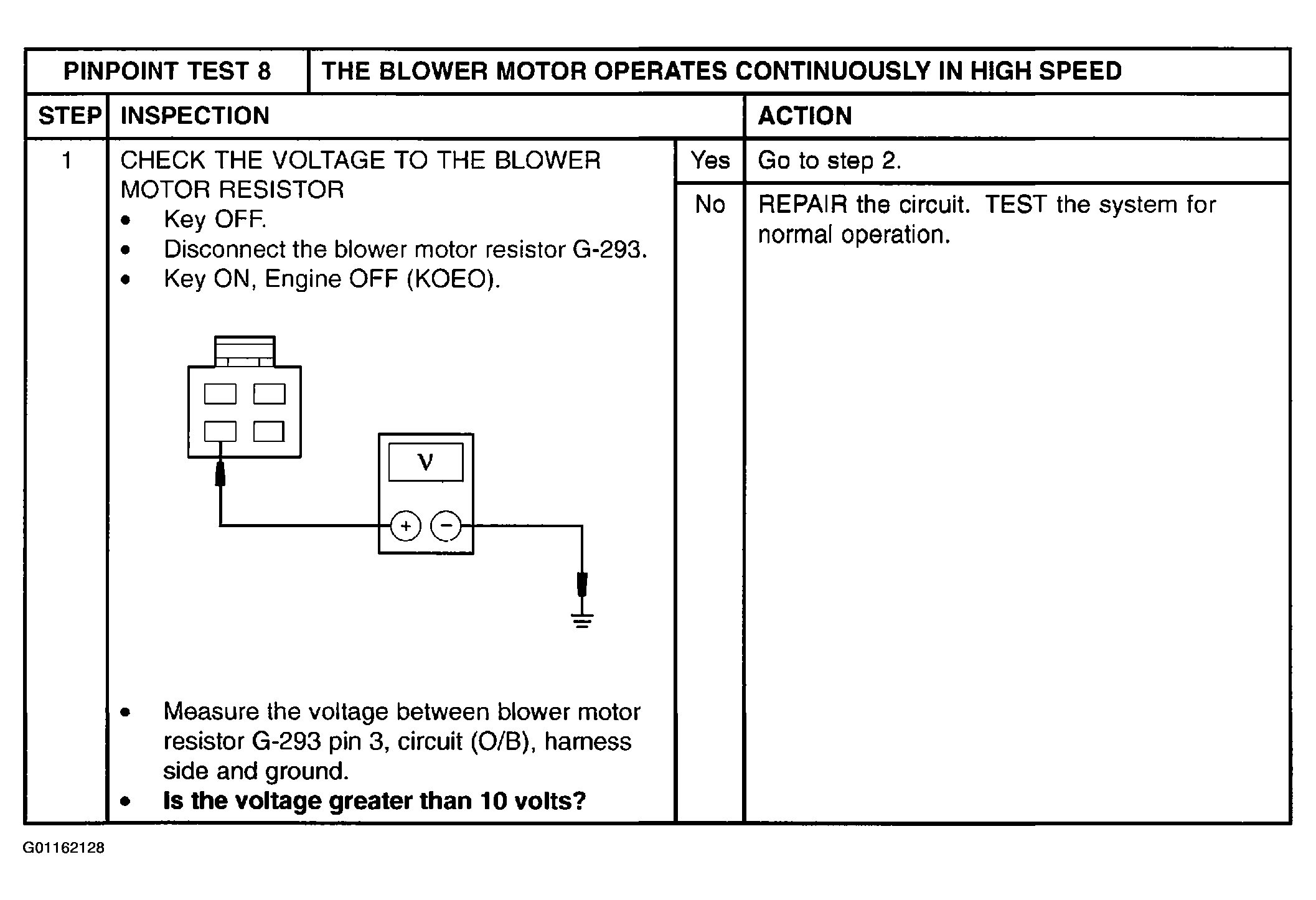

Fig 1: Pinpoint Test 8: The Blower Motor Operates Continuously In High Speed (Step 1)
Courtesy of MAZDA MOTORS CORP.

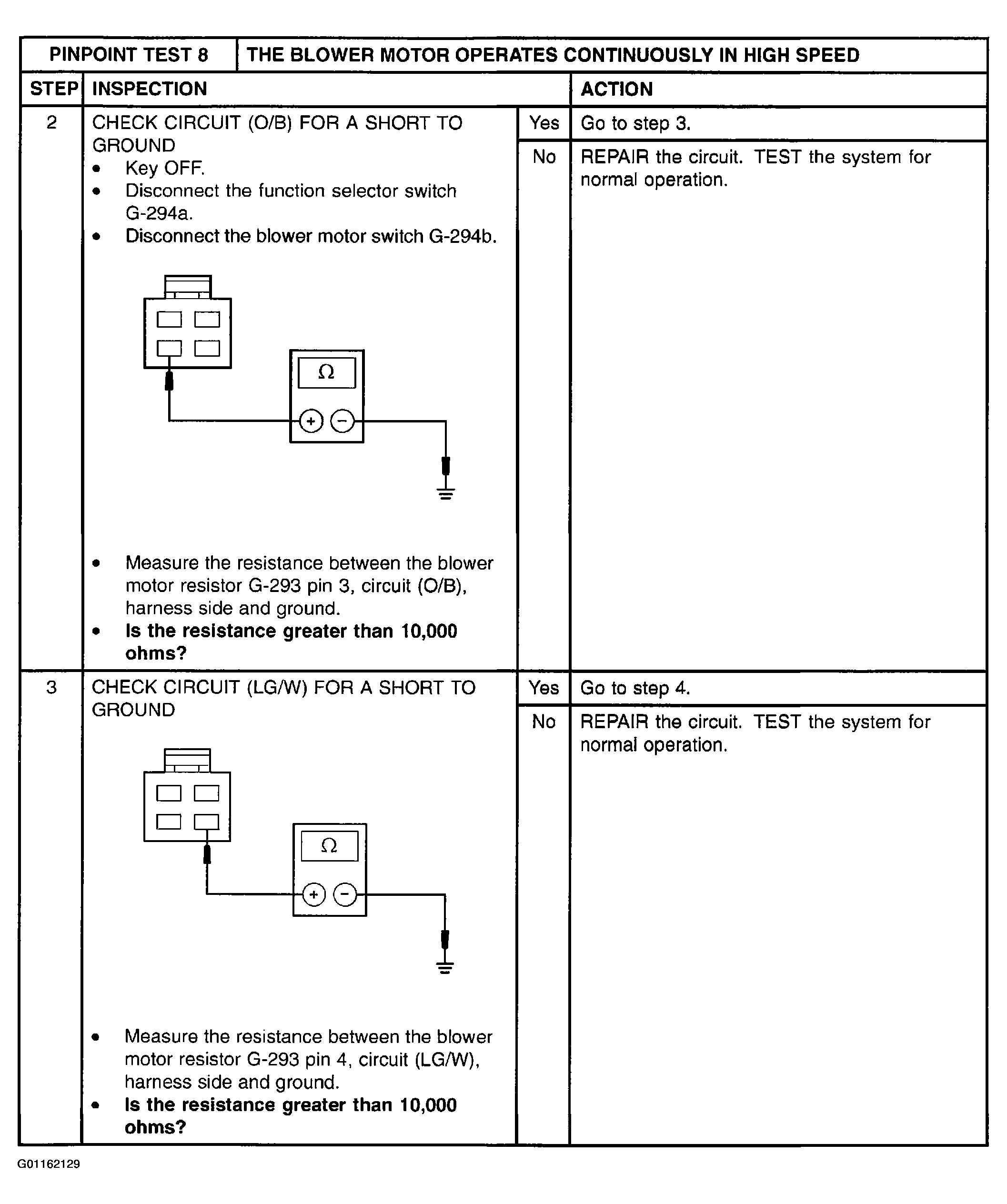

Fig 2: Pinpoint Test 8: The Blower Motor Operates Continuously In High Speed (Steps 2 & 3)
Courtesy of MAZDA MOTORS CORP.

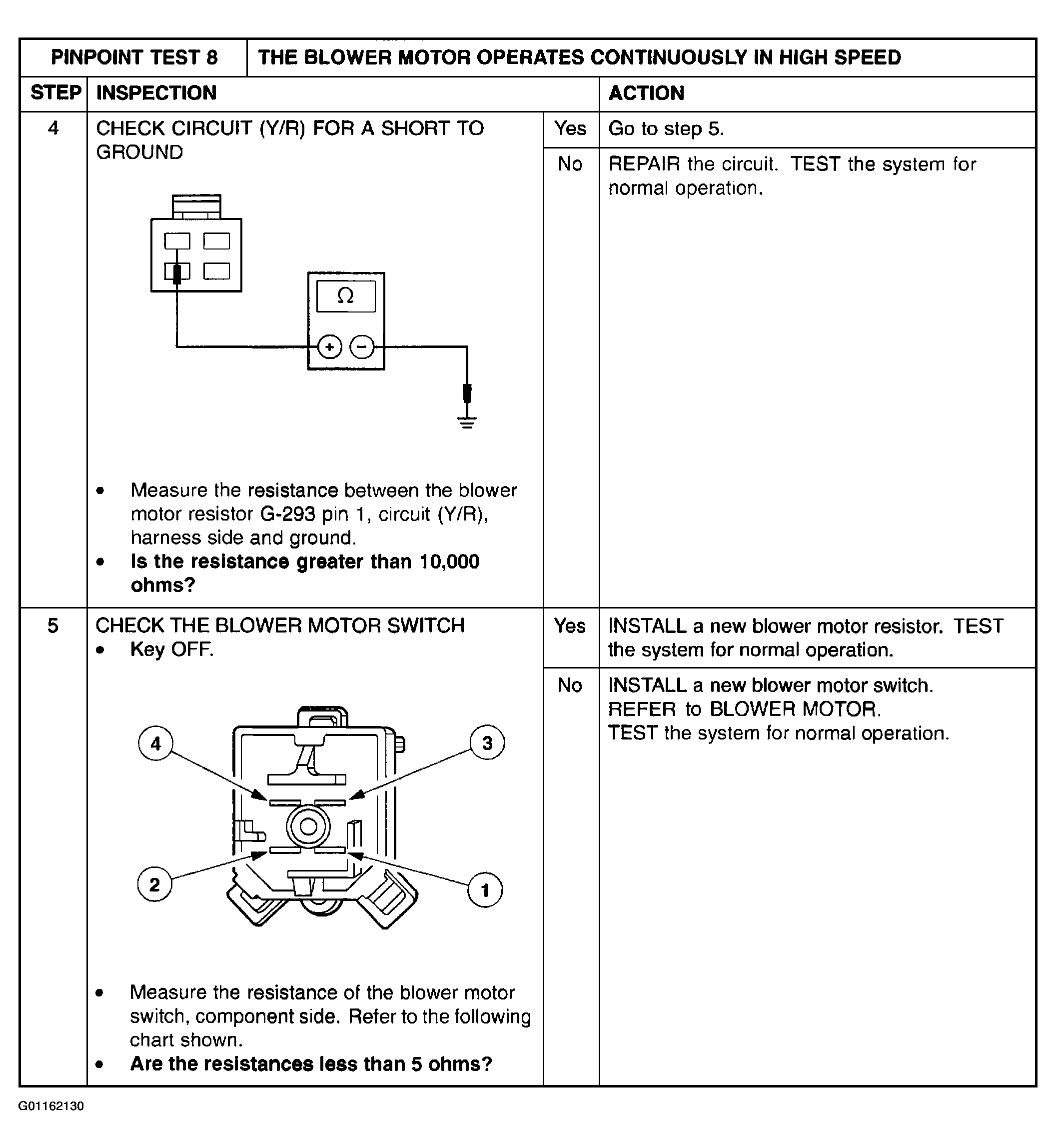

Fig 3: Pinpoint Test 8: The Blower Motor Operates Continuously In High Speed (Steps 4 & 5)
