Pinpoint Test 7: The Blower Motor Does Not Operate
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

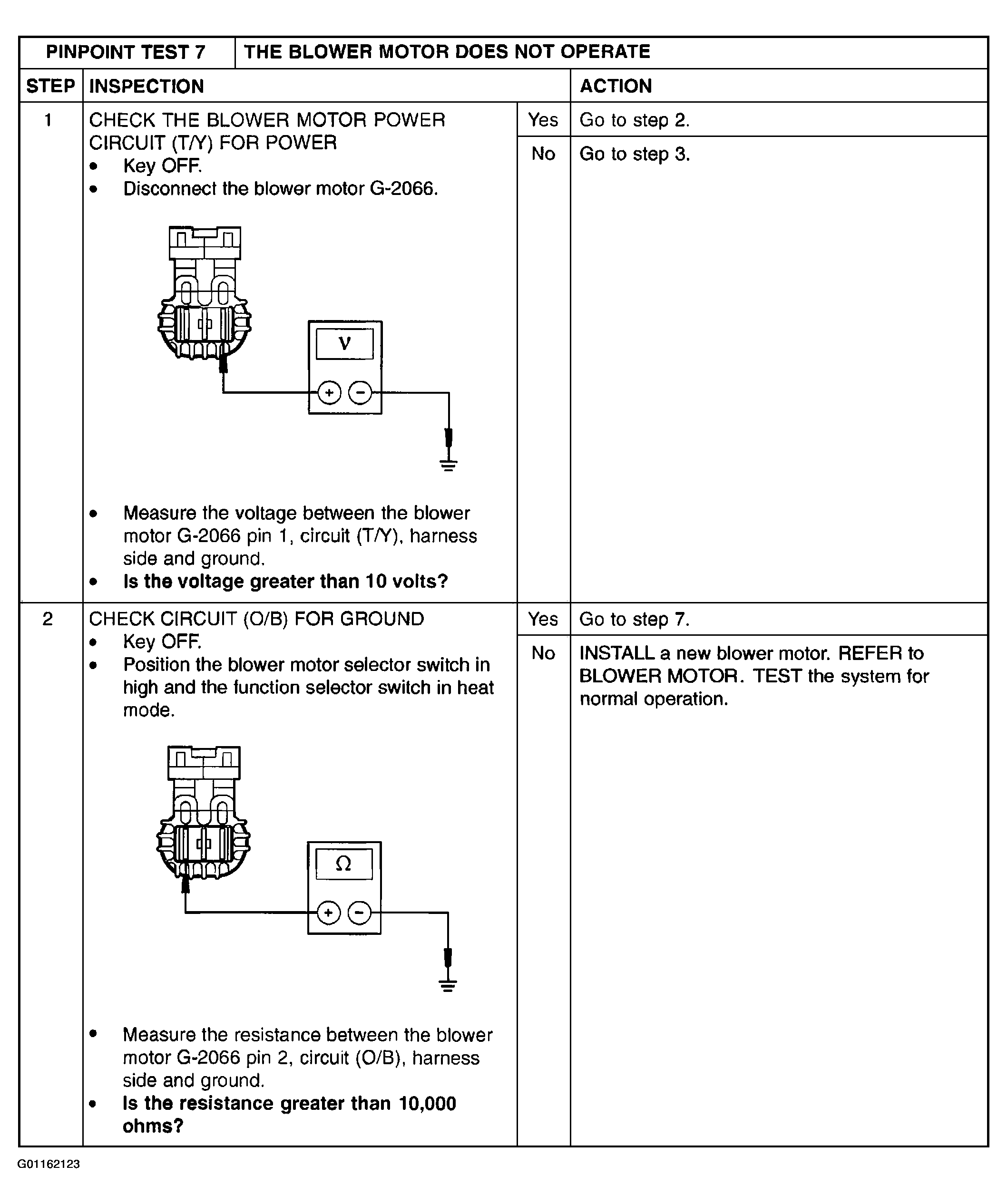

Fig 1: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

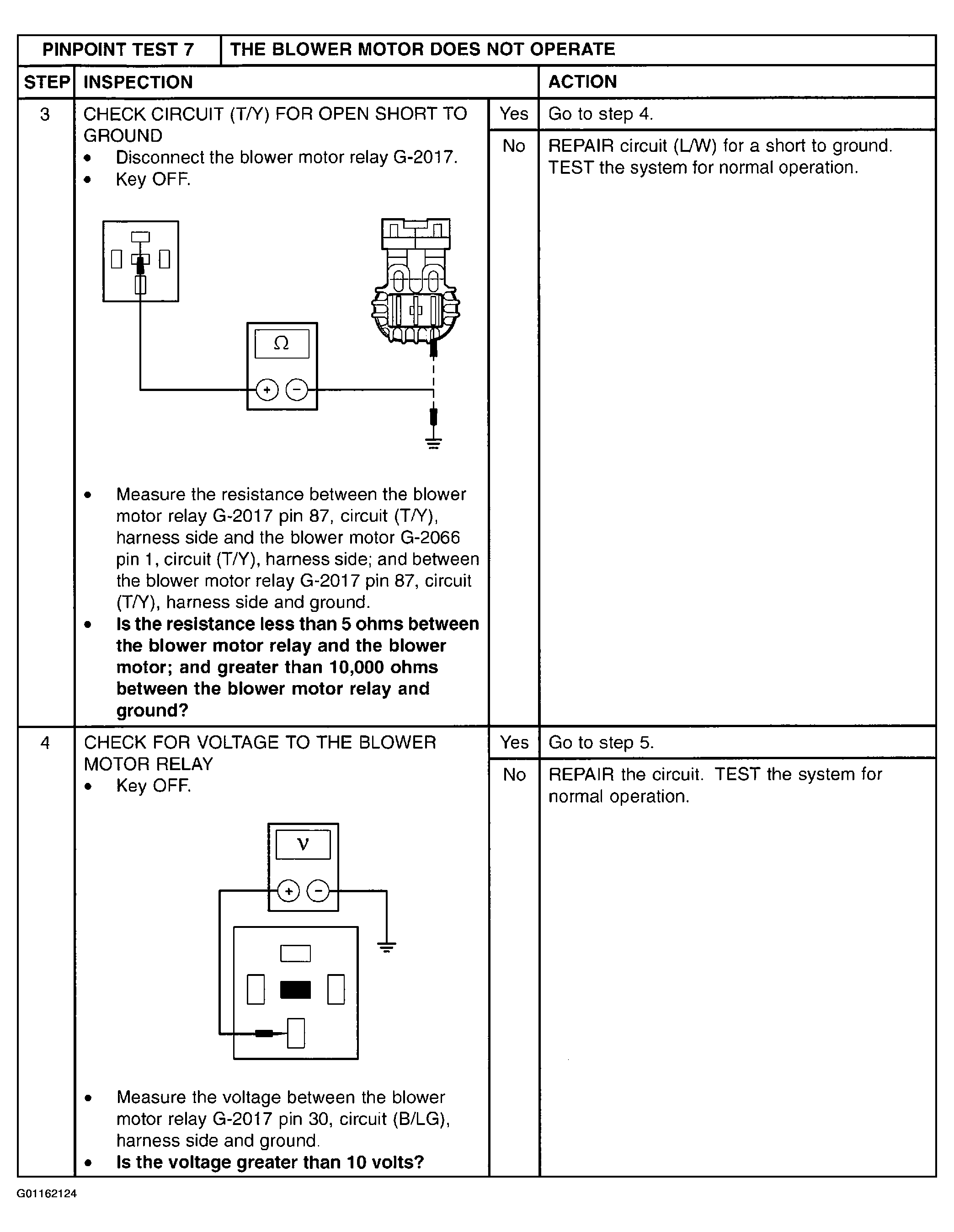

Fig 2: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 3 & 4)
Courtesy of MAZDA MOTORS CORP.

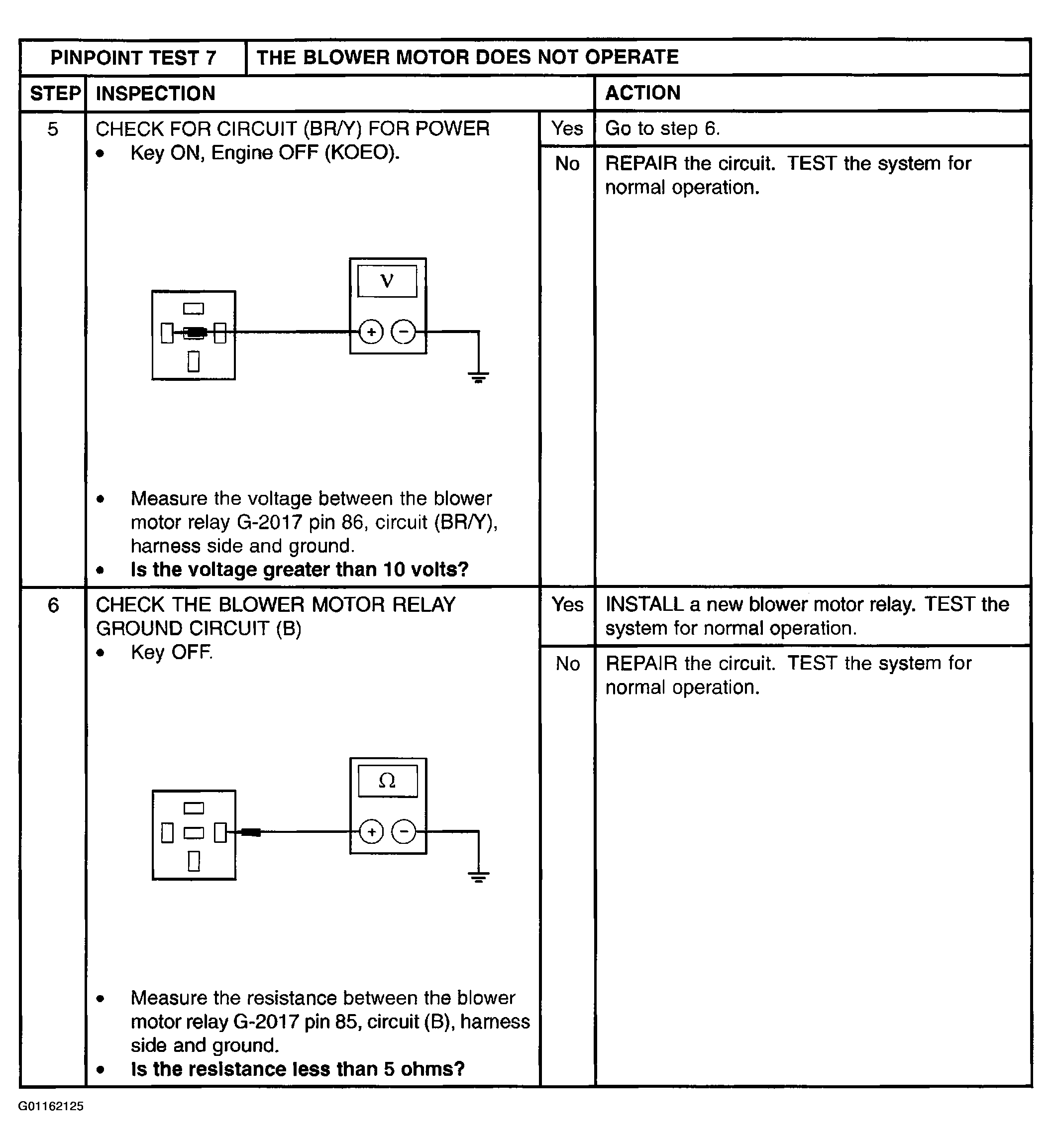

Fig 3: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 5 & 6)
Courtesy of MAZDA MOTORS CORP.

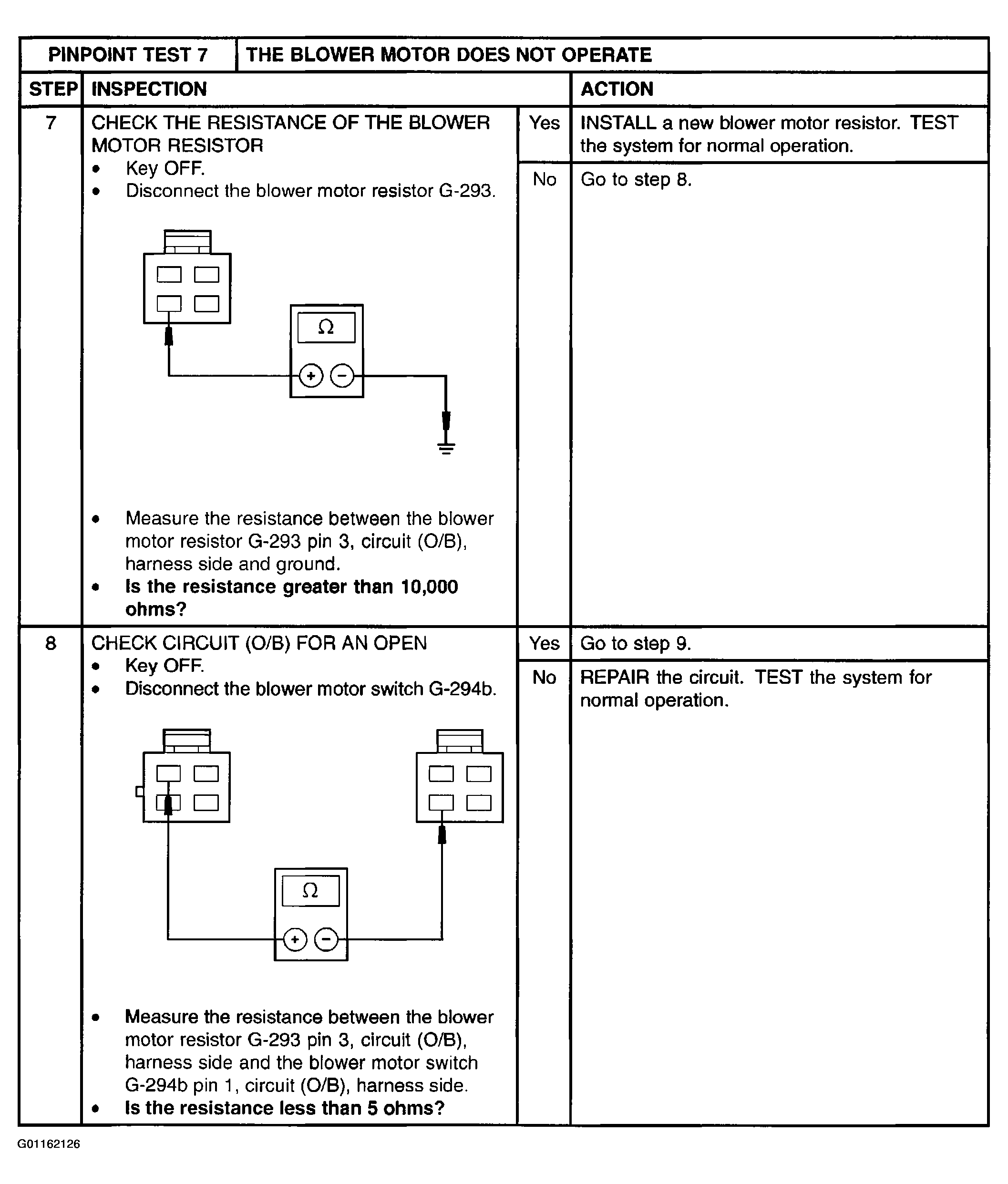

Fig 4: Pinpoint Test 7: The Blower Motor Does Not Operate (Steps 7 & 8)
Courtesy of MAZDA MOTORS CORP.

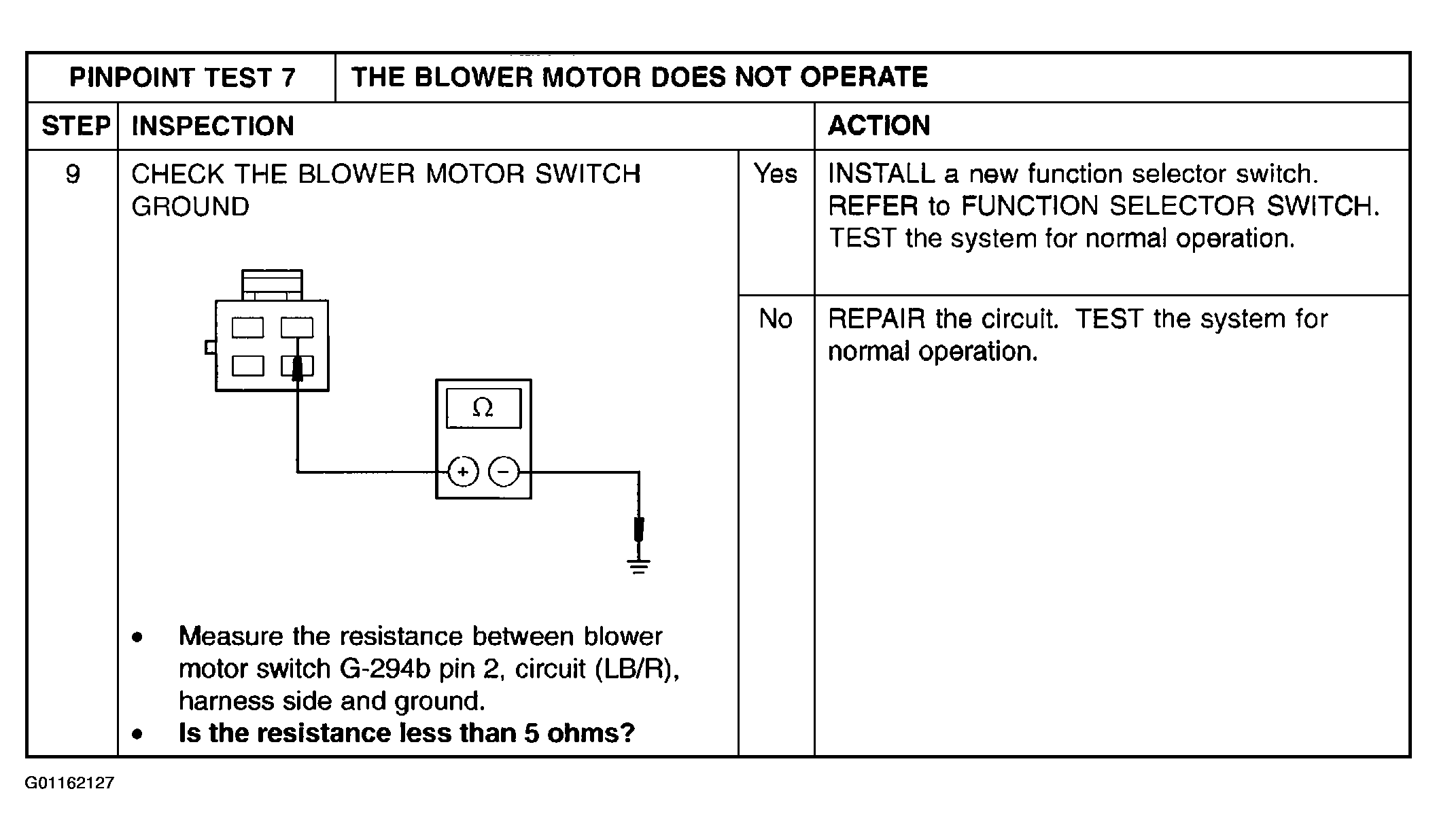

Fig 5: Pinpoint Test 7: The Blower Motor Does Not Operate (Step 9)
