Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

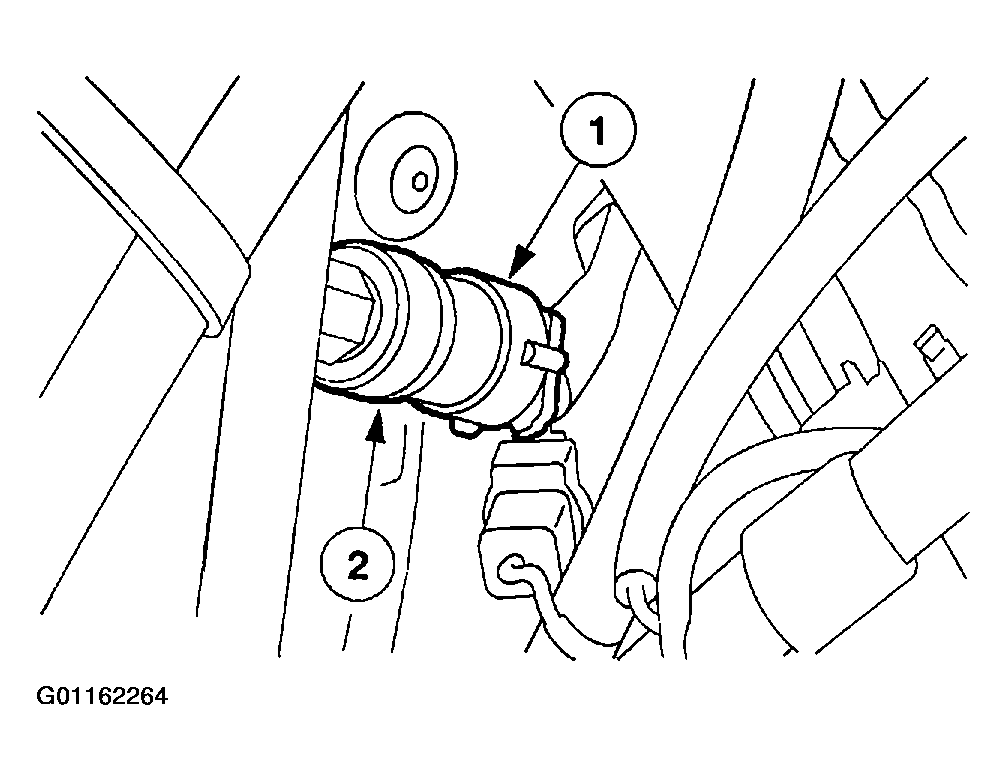

Fig 1: Removing/Installing Pressure Cut-Off Switch

Courtesy of MAZDA MOTORS CORP.

Remove the pressure cut-off switch.
1. Disconnect the A/C pressure cut-off switch electrical connector.
2. Remove the A/C pressure cut-off switch.
To install, reverse the removal procedure.
1. Lubricate the O-ring seals with PAG Compressor Oil.
