Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a heater core leak is suspected, the heater core must be leak tested before the heater core is removed. For additional information, refer to HEATER CORE PRESSURE TEST

Drain the engine coolant.

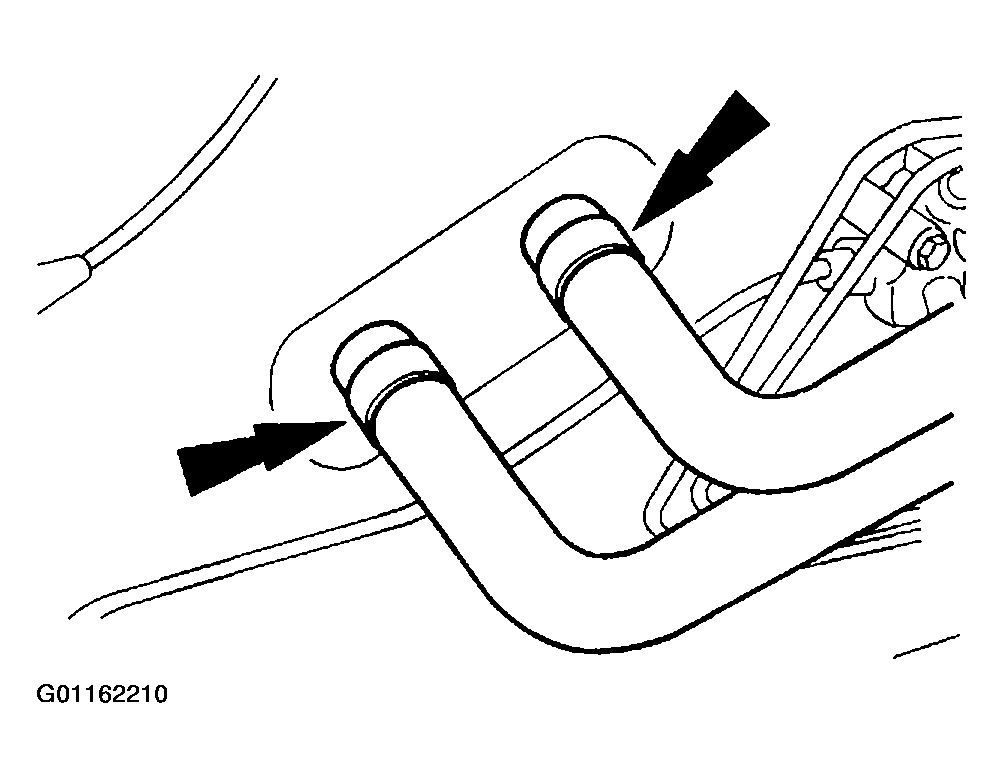

Fig 1: Disconnecting/Connecting Heater Hoses From The Heater Core
Courtesy of MAZDA MOTORS CORP.
Disconnect the heater hoses from the heater core.
Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL .

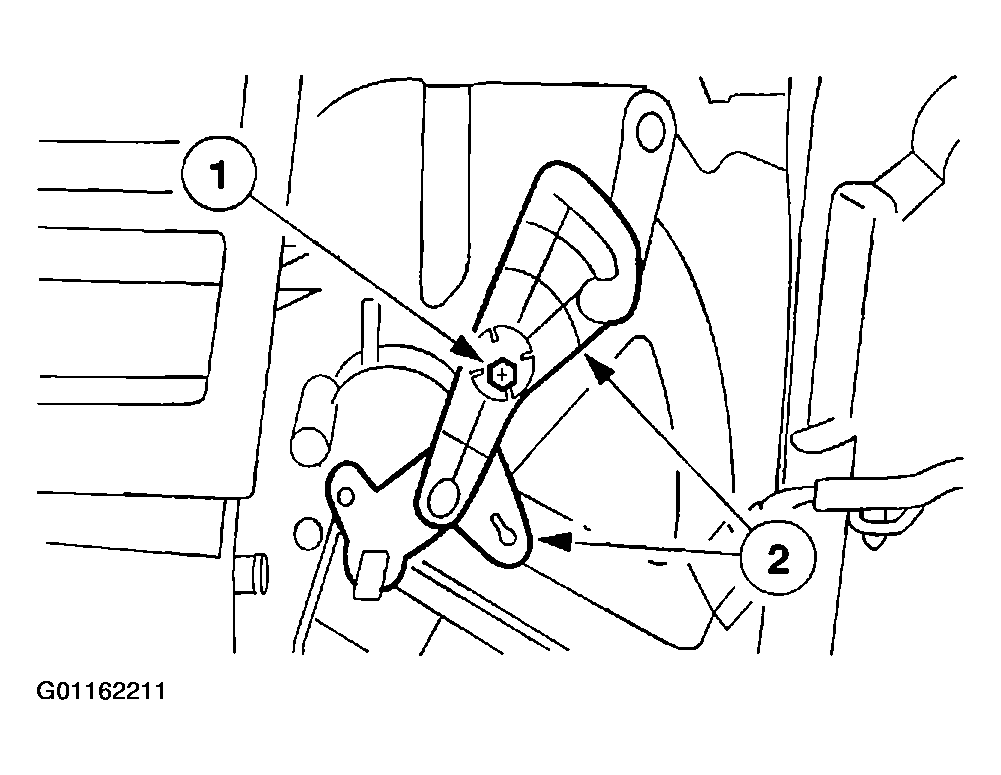

Fig 2: Removing/Installing Heater Blending Door Levers
Courtesy of MAZDA MOTORS CORP.
Remove the heater blending door levers.
1. Remove the screw for heater blending door.
2. Remove the levers for the blending door.

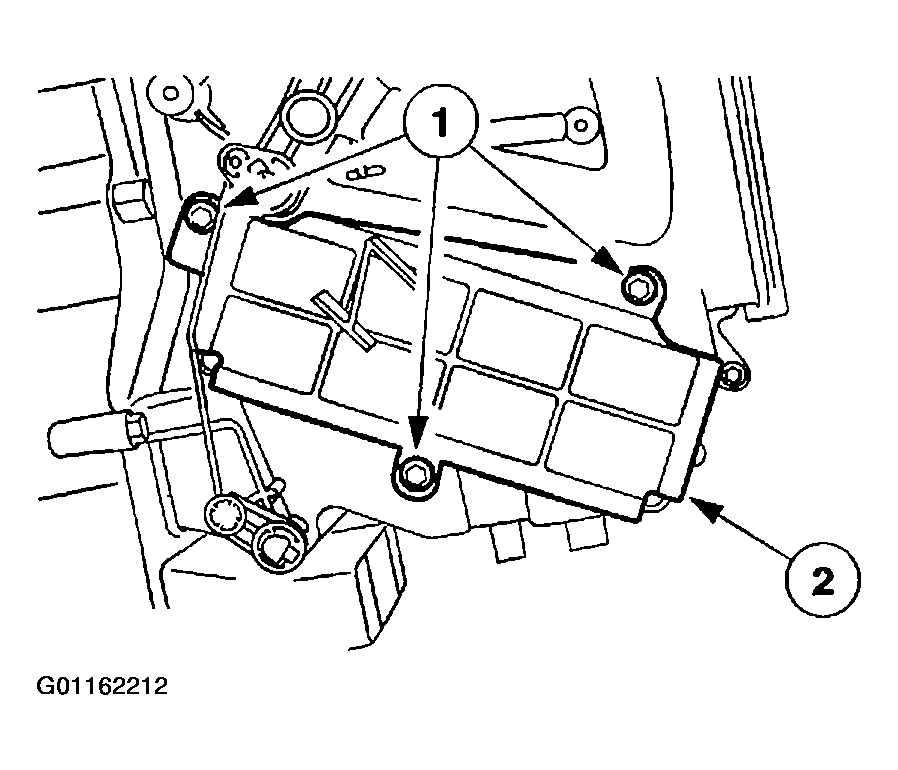

Fig 3: Removing/Installing Heater Core
Courtesy of MAZDA MOTORS CORP.
Remove the heater core.
1. Remove the three screws.
2. Remove the cover for the heater core and pull the heater core out of the housing.
  NOTE:
  - Before installing the temperature control cable, make sure the blend door, cable and temperature switch are correctly positioned. For additional information refer to TEMPERATURE BLEND DOOR CONTROL CABLE .
To install, reverse the removal procedure.
