Purge Solenoid Valve Installation Note: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the order indicated in the table.

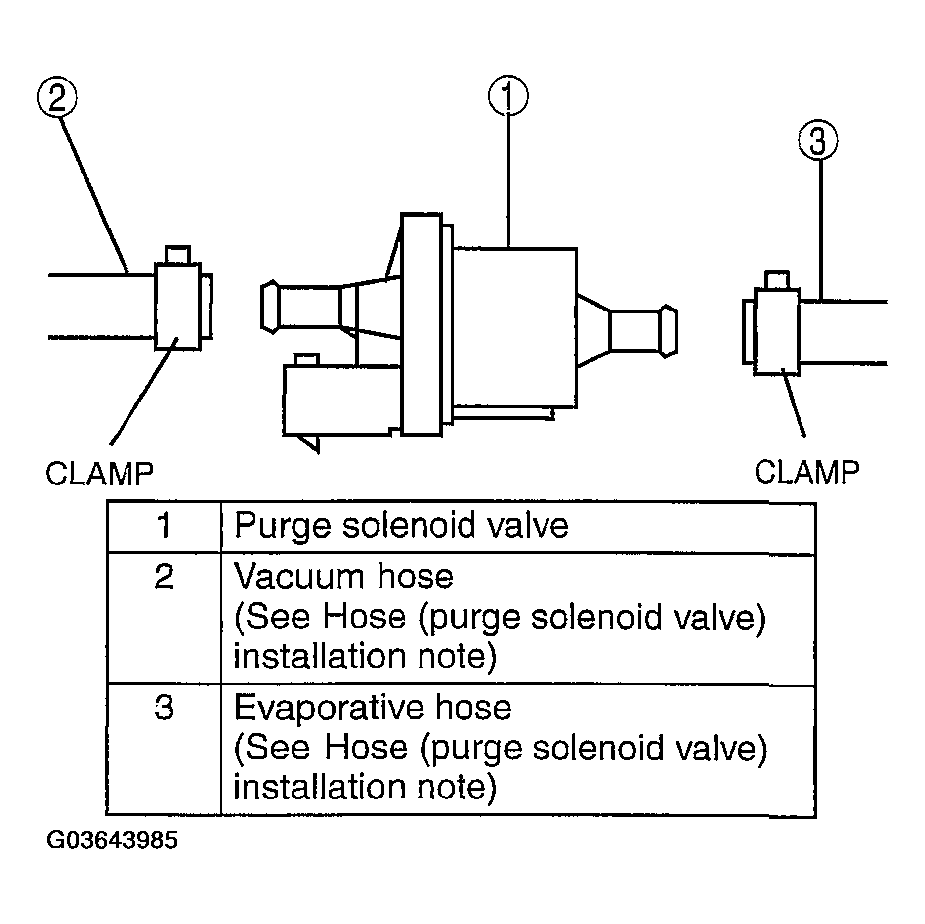

    Fig 1: Installing Purge Solenoid Valve
    G03643985Courtesy of MAZDA MOTORS CORP.
