Oil Pump Installation Note (AJ)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the oil pump bolts in the order as shown in the figure.

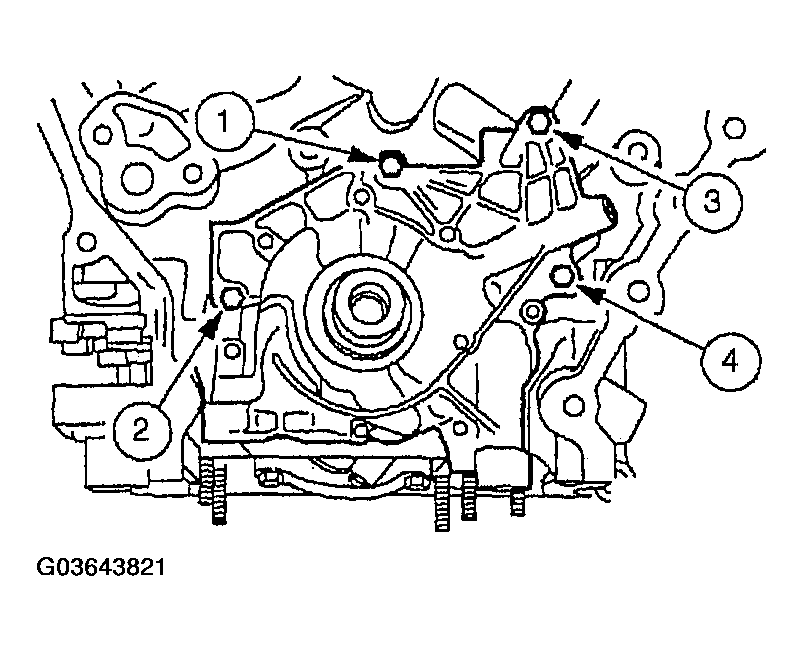

Fig 1: Oil Pump Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
