Oil Pan Removal Note (AJ)
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transaxle housing bolts from oil pan.
Courtesy of MAZDA MOTORS CORP.

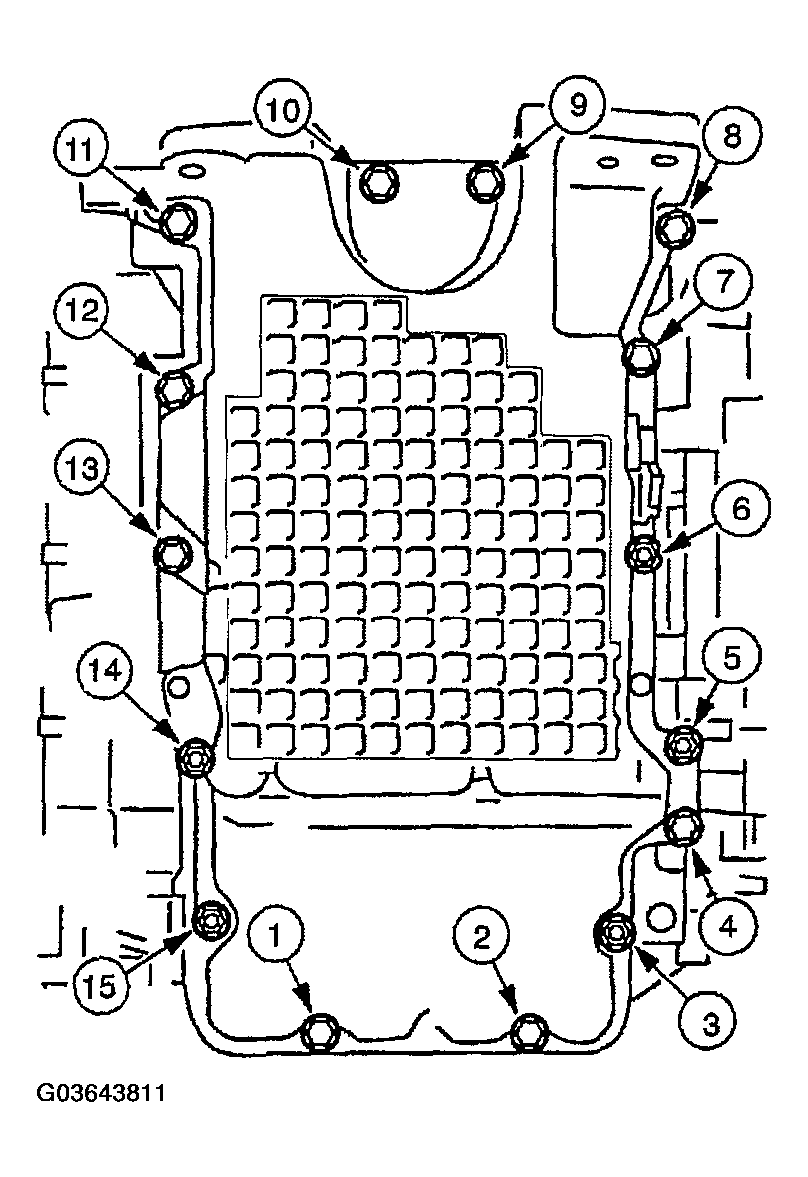

- Loosen the oil pan bolts and studs in two or three passes in the order as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
