Cylinder Head Cover (RH) Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover bolts in the order shown.

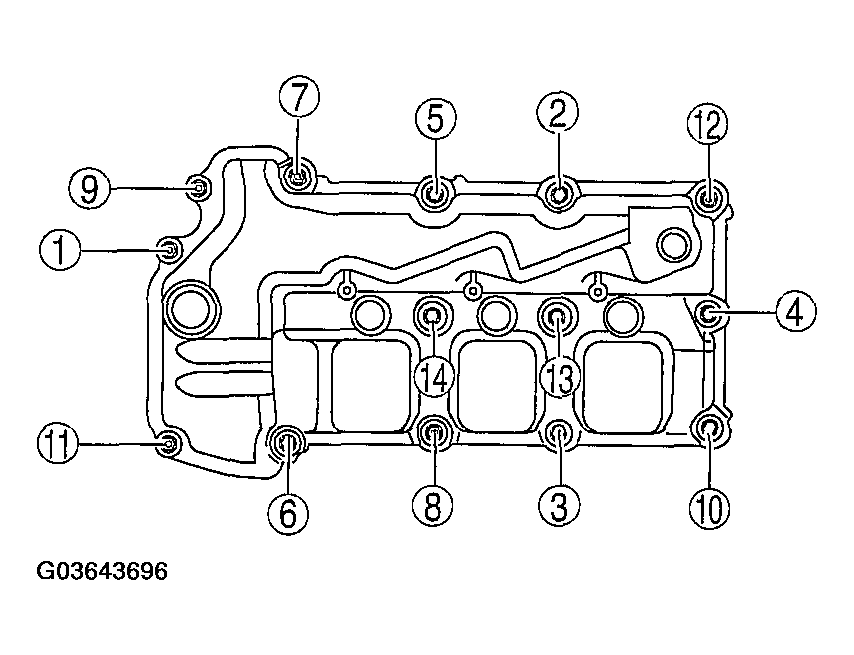

    Fig 1: Removal Order Of Cylinder Head Cover Bolts (RH)
    G03643696Courtesy of MAZDA MOTORS CORP.
  2. Remove the oil control valve (OCV) with cylinder head cover raised as shown in the figure.
    NOTE:
    • Take care not to let the OCV tightening bolt slip into the timing chain cover when removing the OCV tightening bolt from engine front.
  3. Remove the cylinder head cover.

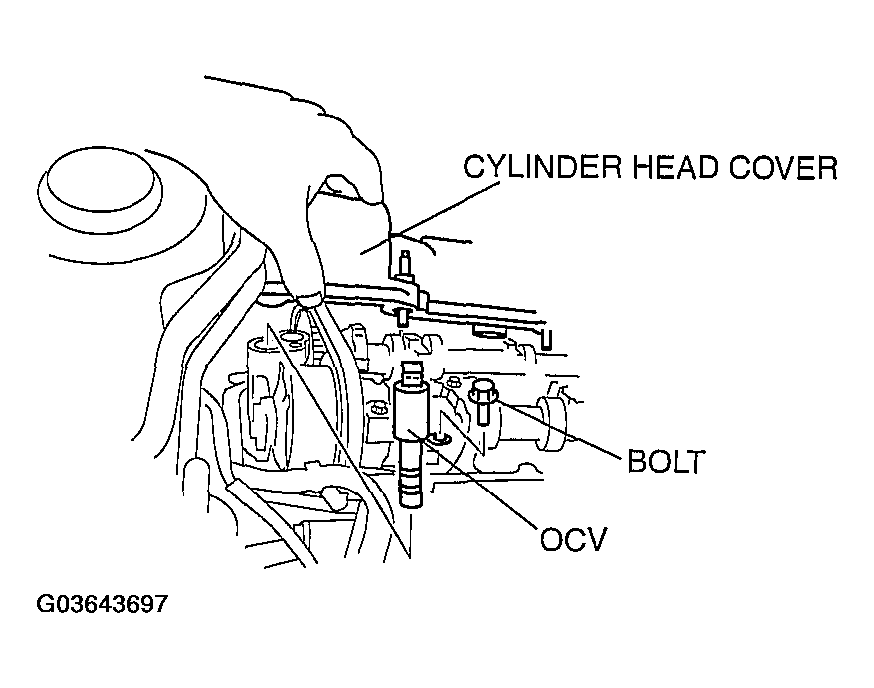

    Fig 2: Removing Cylinder Head Cover
    G03643697Courtesy of MAZDA MOTORS CORP.
